Installing Java and Eclipse on Ubuntu Linux: 2013 Updates



Do you have a JDK installed? You likely want to put $JDK_HOME/bin on your PATH, not the /bin of a JRE, as jar comes with JDK, not JRE.

Do this:

1. Delete all installations of Java.
2. Install the Java SDK (self-extracting) into /opt/jdk1.6.0_16 (for example)
3. Create a symbolic link: ln -s /opt/jdk1.6.0_16 /opt/jdk
4. Edit $HOME/.bashrc:

JAVA_HOME=/opt/jdk
PATH=$PATH:$HOME/bin:$JAVA_HOME/bin

5. Logout and log back in.

This offers many advantages:

• You can install multiple versions of the SDK and need only switch a symbolic link.
• You know where all the files are located.
• You know exactly which version of Java is being used.
• No other versions are installed, so there cannot be any conflicts.

I have done this for years and have never had any problems with Java on Linux, except for packages that do not detect that Java is installed and attempt to install the OpenJDK.

Also, stay away from the OpenJDK as its fonts are terrible to behold.





Environment Preparation

• JavaSE 6r29 JDK(and JRE): java.oracle.com
• Set Path & Test: “C:\Program Files\Java\jre6\bin”
  • java -version
  • javac -version
• IDE
  • Eclipse: www.eclipse.org/downloads
    • Eclipse IDE for Java Developers/Jave EE Developers
  •

JARs(include in Eclipse project when needed):

• TestND: http://beust.com/eclipse
• Java Excel API: http://jexcelapi.sourceforge.net/
  • http://jexcelapi.sourceforge.net/resources/javadocs/2_3_8/docs/jxl/read/biff/BiffException.html
• JUnit: http://www.junit.org/
• Apache ANT (HTML reporting)

• Subversion http://subclipse.tigris.org/update_1.8.x

• Also check: http://download.eclipse.org/releases/juno/





Help and Tutorials

Java/Selenium Reading from Excel sheets:

• http://testerinyou.blogspot.com/2010/10/how-to-do-data-driven-testing-using.html
• http://functionaltestautomation.blogspot.com/2009/10/dataprovider-data-driven-testing-with.html
• http://www.youtube.com/watch?v=ty3q2wQdPmU&feature=BFp&list=WL18EEBB0491EF4A05



Shortcuts:

CTRL-SPACE                        Code writing

CTRL + /                                Add/remove comments

CTRL + SHFT + O                Organize imports (Add/remove imports)

ALT + UP/DOWN              Move a line of code up or down

CTRL + D                               Delete Line

ALT+SHFT+J                        Element Comment



Eclipse Start.bat: JDK7



This uses the JDK7 binaries:

Eclipse.ini Configuration: JDK7

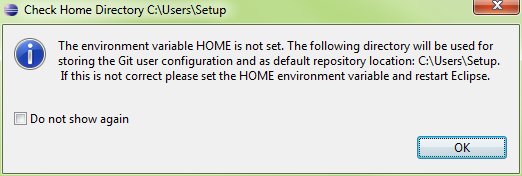

HOME Environment Variable







Installing the Subversion Client

• Go to Help\Eclipse Marketplace and search by ‘Subversion’
• Select Subclipse and Install…
• http://subclipse.tigris.org/update_1.8.x







• Go to Preferences\Team\SVN
• The SVN interface should be JavaHL(JNI)
• Here it is Not Available







• If the Subclipse client plugins are missing, the following prompt will appear



Subclipse Library Not Available





Installing Subclipse from Help\New Software

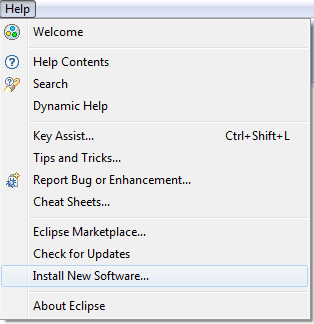

• Go to Help\Install New Software…

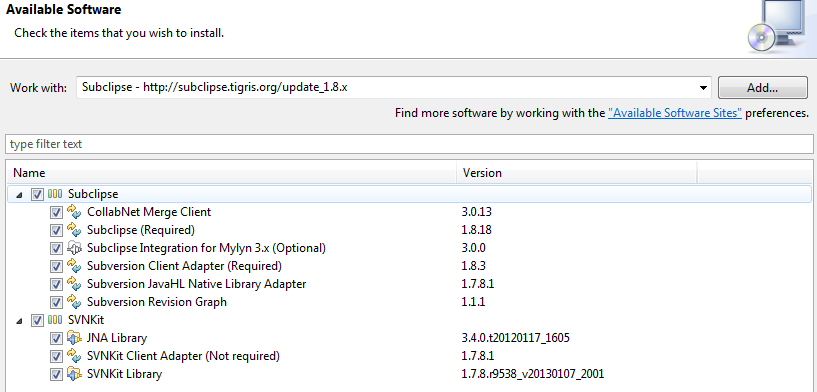

Locate “Subclipse – http://...”

Select Subclipse option, Click Next

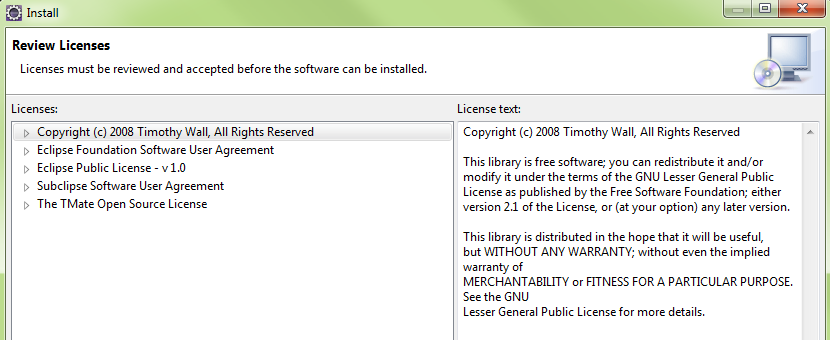

Acknowledge EULAs

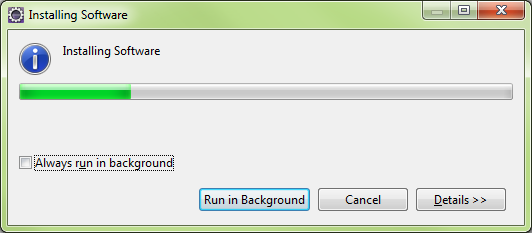

Eclipse will download selected packages

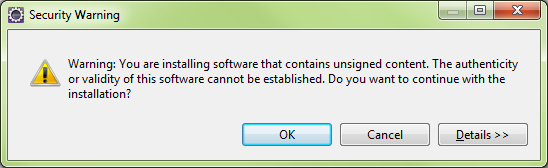

Security Warning

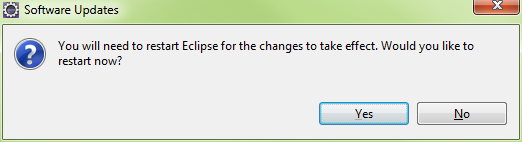

Eclipse will restart









Installing Subclipse From Help\Eclipse Market Place…

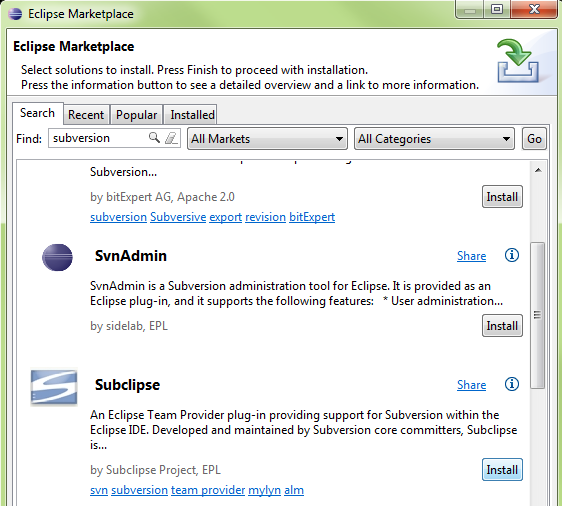

Eclipse Marketplace: Subclipse selection

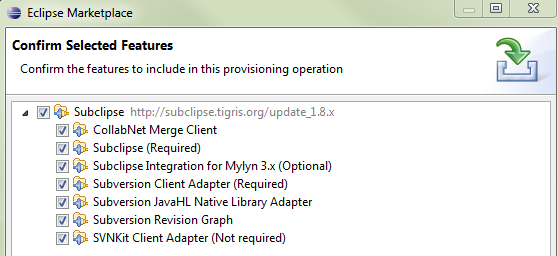

Select all packages

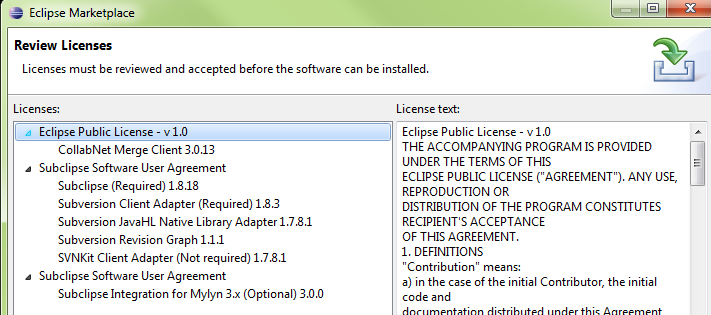

Acknowledge the EULAs



Eclipse will download the packages

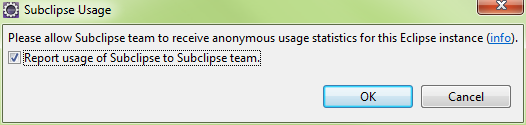

Upon restarting, Eclipse will prompt for communicating Subclipse usage







Enabling the SVN Connector and Plugin



Eclipse\Preferences\Team\SVN

Select SVN interface: JavaHL and press OK

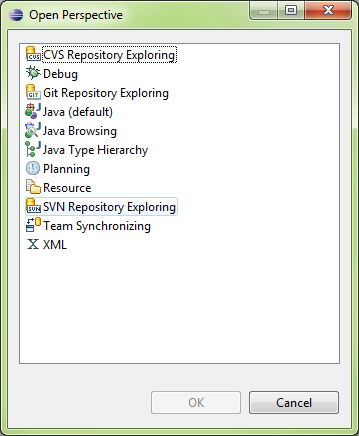

Open the SVN Repository View





The SVN repository Exporting Panel will appear





Right Click in the SVN repositories panel, select New..

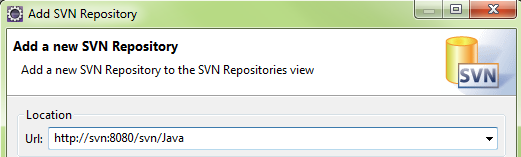

Enter the URL of the SVN Server and Repository

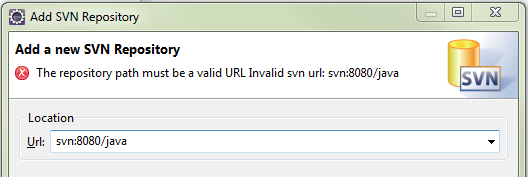

If Incorrect, Eclipse will indicate an Error

Accessing SVN from the Project Explorer

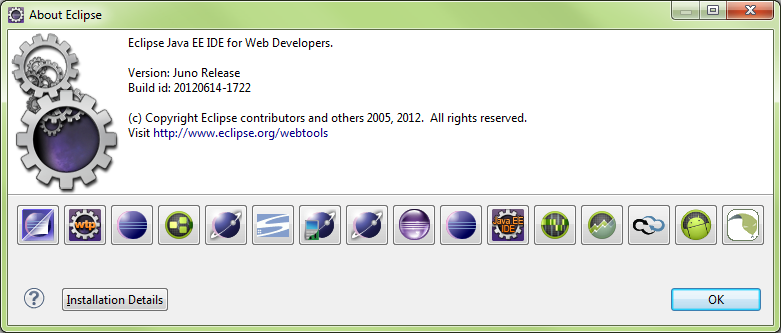

Eclipse About



About Main Form





Installation Details





Installation History

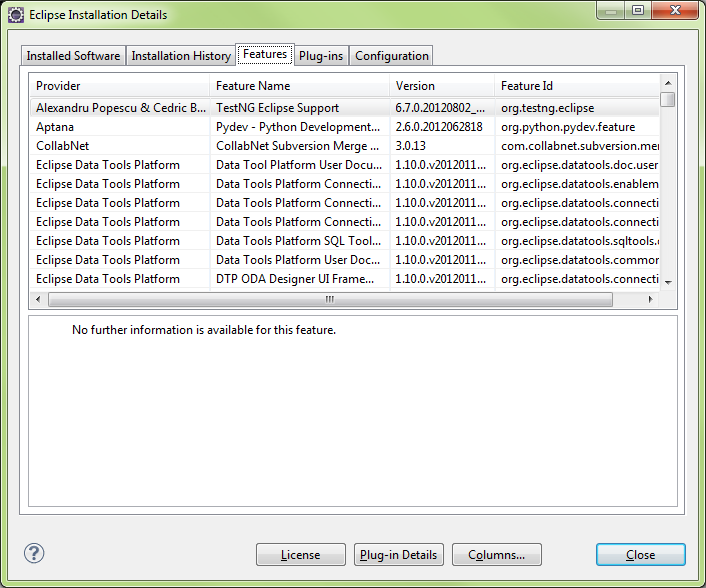

Features

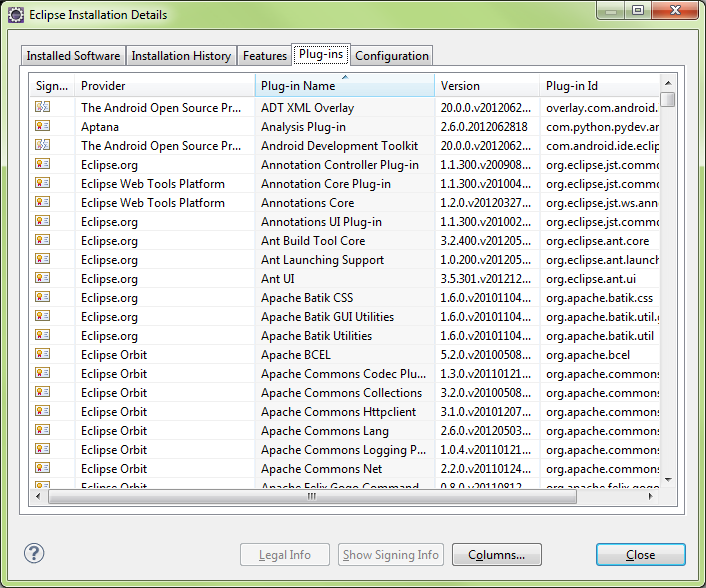

Plugins

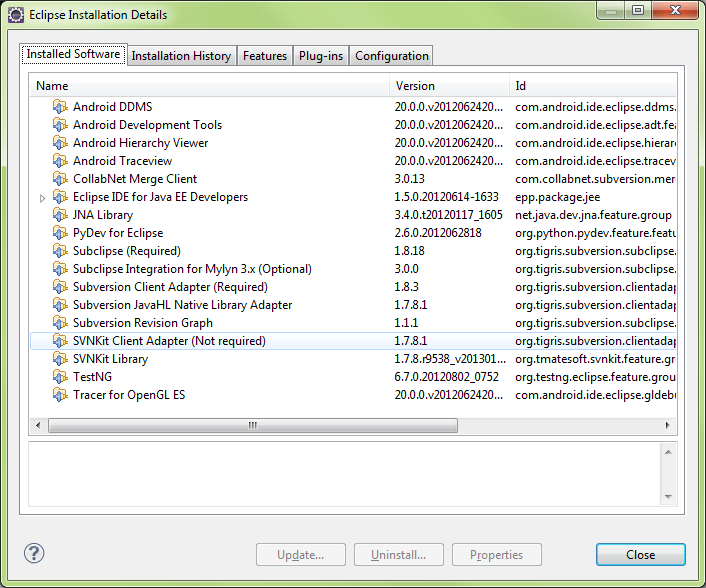

Eclipse Installation Details

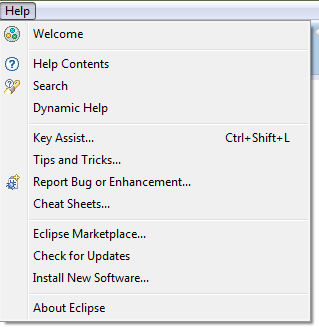

Eclipse Help



Main Contents View

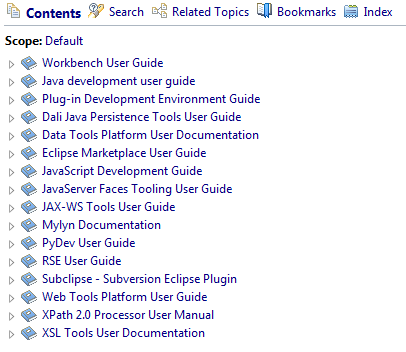

Help Contents Expanded



Help Index

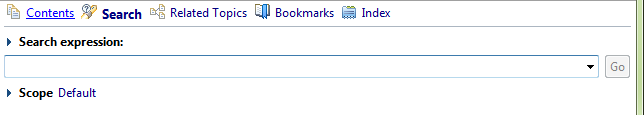

Help Search
