JUnit Workbook(2012)

JUNIT

Annotations

@Rule

Used to declare variables that JUnit can use internally for its trackind reporting of test progress/errors

@BeforeClass (Static)

Ran before the first @Test in the class
Ran before the @Before annotation

@AfterClass (Static)

The last annotation ran by JUnit in the class

@Before

Ran before each @Test

@After

Ran after each @Test

@Ignore

used with @Test to skip the test

@Test

Declare a test that JUnit will run
method name must have ‘test’

@Parameters

Handling Assertions

Create class variable
Create a Try/Catch block around evaluations
Use ‘Throwable’ data type
Use .addError() to accumulate ‘Failures’

Example

@Rule //JUNIT Rule

public ErrorCollector errCollector = new ErrorCollector();

@Test

try {

Assert.assertEquals(expected_total_friends, actual_total_friends);

} catch (Throwable t) { //Throwable data type

System.out.println("Error encountered 100..101");

// java code reports the error

errCollector.addError(t);

}

System.out.println("B");

Parameterizing

creating data driven tests

method of data storage doesn’t matter, Parameterization is done via:

@Parameters uses Collection<Object[]>() ← this is a 2D Array
@Test uses objects row-by-row: [1][*], [2][*], [3][*]

Example

@Parameters

public static Collection<Object[]> data(){

//sublass Collection is in superclass ArrayList is subclass

//Collection a = new ArrayList();

//a.add("aa");

//rows - number of times to run the test

//cols - number of parameters to pass to test

Object[][] data = new Object[2][3];

// 1st row

data[0][0]="testuser1";

data[0][1]="pass1";

data[0][2]=7898;

// 2st row

data[1][0]="testuser2";

data[1][1]="pass2";

data[1][2]=78999;

//returning a list instead of an array

return Arrays.asList(data);

Test Listeners

Custom Runners

Apache Ant

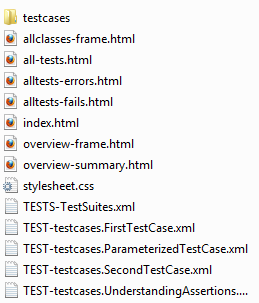

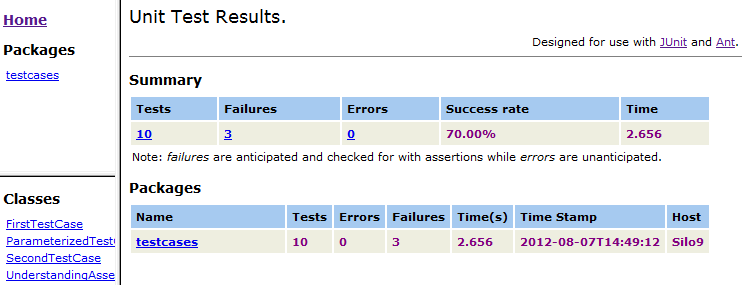

Ant is used for running a test suite via command line and outputting results in XML with HTML pages to review test data results

Installation & Config

Download Links and Reference

Install

Copy to C:\apache-ant-1.8.4\
Environment

PATH: “C:\apache-ant-1.8.4\bin”

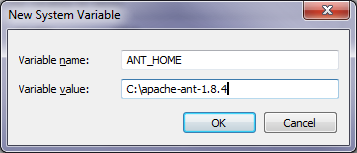

ANT_HOME var: C:\apache-ant-1.8.4\

Run ‘ant’ and check for errors

Error Message on tools.jar

C:\Users\SiloSix>ant

Unable to locate tools.jar. Expected to find it in C:\Program Files\Java\jre6\lib\tools.jar

Buildfile: build.xml does not exist!

Build failed

Get Tools.jar

C:\Program Files\Java\jdk1.6.0_33\lib\tools.jar
C:\Program Files\Java\jre6\lib\tools.jar

C:\Users\SiloSix>ant

Buildfile: build.xml does not exist!

Build failed

build.xml

Resides at project root
Ant searches for in the java project
Gives parameters for ant
Environment vars are ${} not ()
All Directories must be present prior to compile/run

Example includes for test classes

Error on Ant Run (Compile OK)

Errors while applying transformations: Fatal error

My guess is that the problem is caused by the mismatching XSLT version supported by Ant JUnit plugin (which contains XSLT files that are XSTL 1.0, as you correctly noted) and XSLT processor (supporting XSLT version 2.0). My guess #2 is that you have the newer XSLT processor (like Saxon) somewhere in classpath so that it's loaded before some other XSLT processor (like Xalan which implements XSLT v1.0). For further troubleshooting I would suggest [url=http://www.google.com/search?q=junitreport+"Errors+while+applying+transformations:+Fatal+error+during+transformation"&btnG=Search]googing it out[/url].

D:\Java\Workspace\Module8_Junit_Ant>ant run

Buildfile: D:\Java\Workspace\Module8_Junit_Ant\build.xml

run:

[junit] Running testcases.FirstTestCase

[junit] Tests run: 3, Failures: 0, Errors: 0, Time elapsed: 0.501 sec

[junit] Running testcases.ParameterizedTestCase

[junit] Tests run: 2, Failures: 0, Errors: 0, Time elapsed: 0.485 sec

[junit] Running testcases.SecondTestCase

[junit] Tests run: 3, Failures: 0, Errors: 0, Time elapsed: 0.434 sec

[junit] Running testcases.UnderstandingAssertions

[junit] Tests run: 2, Failures: 3, Errors: 0, Time elapsed: 0.488 sec

[junit] Test testcases.UnderstandingAssertions FAILED

[junitreport] Processing D:\Java\Workspace\reports\TESTS-TestSuites.xml to C:\Users\SiloSix\AppData\

Local\Temp\null987575801

[junitreport] Loading stylesheet jar:file:/C:/apache-ant-1.8.4/lib/ant-junit.jar!/org/apache/tools/a

nt/taskdefs/optional/junit/xsl/junit-frames.xsl

[junitreport] jar:file:/C:/apache-ant-1.8.4/lib/ant-junit.jar!/org/apache/tools/ant/taskdefs/optiona

l/junit/xsl/junit-frames.xsl:6: Warning! Running an XSLT 1.0 stylesheet with an XSLT 2.0 processor

[junitreport] jar:file:/C:/apache-ant-1.8.4/lib/ant-junit.jar!/org/apache/tools/ant/taskdefs/optiona

l/junit/xsl/junit-frames.xsl:38: Fatal Error! Unknown extension instruction

[junitreport] Failed to process D:\Java\Workspace\reports\TESTS-TestSuites.xml

BUILD FAILED

D:\Java\Workspace\Module8_Junit_Ant\build.xml:112: Errors while applying transformations: Fatal error

r during transformation

Total time: 10 seconds

Compile/Clean/Run

D:\Eclipse\Java\Module8_Junit_Ant>ant clean

D:\Eclipse\Java\Module8_Junit_Ant>ant compile

D:\Eclipse\Java\Module8_Junit_Ant>ant run

Creating Ant Batchfile

D:\

cd D:\Eclipse\Java\Module8_Junit_Ant

ant clean compile run

TestNG

http://testng.org/doc/download.html
http://search.maven.org/#search|ga|1|a%3A%22testng%22

Apendices

JUnit Test Example 1(Simple)

Test Suite Runner Class (Simple)

package testcases;

import org.junit.runner.RunWith;

import org.junit.runners.Suite;

import org.junit.runners.Suite.SuiteClasses;

@RunWith(Suite.class)

@SuiteClasses({

FirstTestCase.class,

SecondTestCase.class

})

public class MyTestSuiteRunner {

}

Test Case Example 1 (Simple)

package testcases;

import org.junit.After;

import org.junit.AfterClass;

import org.junit.Before;

import org.junit.BeforeClass;

import org.junit.Test;

public class SecondTestCase {

//@Test

//@Ignore

//@Before

//@After

//@BeforeClass

//@AfterClass

@BeforeClass // must be static

public static void beforeClass(){

System.out.println("**************Beginning***************");

}

@Before

public void beforeTestCase(){

//open browser - selenuim

System.out.println("Opening the browser");

}

@Test

public void sendEmailTest(){

System.out.println("Testing Sending Email");

}

@Test

public void sendMessageTest(){

System.out.println("Testing Sending Message");

}

@After

public void afterTestCase(){

System.out.println("Closing the browser");

}

@AfterClass //must be static

public static void afterClass(){

System.out.println("**************Ending***************");

}

JUnit Test Example 2

MyTestSuiteRunner.java

package testcases;

import org.junit.runner.RunWith;

import org.junit.runners.Suite;

import org.junit.runners.Suite.SuiteClasses;

@RunWith(Suite.class)

@SuiteClasses({

UnderstandingAssertions.class,

FirstTestCase.class,

SecondTestCase.class

})

public class MyTestSuiteRunner {

}

FirstTestCase.java

package testcases;

import org.junit.After;

import org.junit.AfterClass;

import org.junit.Before;

import org.junit.BeforeClass;

import org.junit.Test;

public class FirstTestCase {

@BeforeClass

public static void beforeThisTest(){

System.out.println("Test Class 01 Starting--------------");

}

@Test // test case

public void loginTest(){

// selenium code

System.out.println("1-logging in user");

}

@Test

public void registerTest(){

System.out.println("2-Registering a user");

}

@Test

public void dataBaseTest(){

System.out.println("3-Testing the database");

}

@AfterClass

public static void afterThisTest(){

System.out.println("Test Class 01 Ending--------------");

}

SecondTestCase.java

package testcases;

import org.junit.After;

import org.junit.AfterClass;

import org.junit.Assume;

import org.junit.Before;

import org.junit.BeforeClass;

import org.junit.Test;

public class SecondTestCase {

//@Test

//@Ignore

//@Before

//@After

//@BeforeClass

//@AfterClass

// Function that JUnit won't run automatically

// Must be called within @Tests

public static boolean checkLogin(){

return true;

// true - if login is the success

}

@BeforeClass // must be static

public static void beforeClass(){

System.out.println("Test Class 02 Starting--------------");

// false - skip all tests in this class

// JUnit monitors this boolean for executing the rest of the tests.

Assume.assumeTrue(checkLogin());

}

@AfterClass //must be static

public static void afterClass(){

System.out.println("Test Class 02 Ending--------------");

}

@Before

public void beforeTestCase(){

//open browser - selenuim

System.out.println("Opening the browser");

}

@After

public void afterTestCase(){

System.out.println("Closing the browser");

}

// TEST CASES******************************************

@Test

public void sendEmailTest(){

System.out.println("1-Testing Sending Email");

}

@Test

public void getMessageTest(){

// Assume.assumeTrue(false); use to break out of a @Test

System.out.println("2-Testing Sending Message");

}

@Test

public void sendMessageTest(){

System.out.println("3-Testing Receiving Message");

}

ParameterizedTestCase.java

package testcases;

import java.util.ArrayList;

import java.util.Arrays;

import java.util.Collection;

import org.junit.Test;

import org.junit.runner.RunWith;

import org.junit.runners.Parameterized;

import org.junit.runners.Parameterized.Parameters;

//1 step

@RunWith(Parameterized.class)

public class ParameterizedTestCase {

//2 step

//declare parameters at global level

public String username;

public String password;

public int pin;

//3 step

//constructor

public ParameterizedTestCase(

String username,

String password,

int pin

){

this.username = username;

this.password = password;

this.pin = pin;

}

//4 step

@Parameters

public static Collection<Object[]> data(){

//sublass Collection is in superclass ArrayList is subclass

//Collection a = new ArrayList();

//a.add("aa");

//rows - number of times to run the test

//cols - number of parameters to pass to test

Object[][] data = new Object[2][3];

// 1st row

data[0][0]="testuser1";

data[0][1]="pass1";

data[0][2]=7898;

// 2st row

data[1][0]="testuser2";

data[1][1]="pass2";

data[1][2]=78999;

//returning a list instead of an array

return Arrays.asList(data);

}

@Test

public void testRegister(){

//selenium

System.out.println("testing Registration -- " + username + " -- " + password + " -- " + pin);

}

UnderstandingAssertions.java

package testcases;

import junit.framework.Assert;

import org.junit.Rule;

import org.junit.Test;

import org.junit.rules.ErrorCollector;

public class UnderstandingAssertions {

@Rule //JUNIT Rule

public ErrorCollector errCollector = new ErrorCollector();

@Test

public void testFriendlistFacebook(){

int actual_total_friends =100; //selenium picks up this value from page

int expected_total_friends=101; //from XLS file

/* if (actual_total_friends == expected_total_friends) {

System.out.println("Pass");

} else {

System.out.println("Fail");

// report error, but need assert for JUnit to pick up failure

}

System.out.println("A");

Assert.assertEquals(expected_total_friends, actual_total_friends);

//JUnit will pick up @Test failure

// not executed due to Assert...

System.out.println("B");

}

@Test

public void testFriendlistFacebook2(){

int actual_total_friends =100; //selenium picks up this value from page

int expected_total_friends=101; //from XLS file

/* if (actual_total_friends == expected_total_friends) {

System.out.println("Pass");

} else {

System.out.println("Fail");

// report error, but need assert for JUnit to pick up failure

}

System.out.println("A");

// try catch will catch error

// But JUnit won't see the failure

try {

Assert.assertEquals(expected_total_friends, actual_total_friends);

} catch (Throwable t) { //Throwable data type

System.out.println("Error encountered 100..101");

// java code reports the error

errCollector.addError(t);

}

System.out.println("B");

try {

Assert.assertEquals("A", "B");

} catch (Throwable t) {

System.out.println("Error encountered AB");

errCollector.addError(t);

}

try {

Assert.assertEquals("A", "A");

} catch (Throwable t) {

System.out.println("Error encountered AA");

errCollector.addError(t);

}

//assert won't trigger on true

Assert.assertTrue("error msg", true);

Assert.assertTrue("error msg", 6>3);

}

Apache ANT Buildfile (build.xml)

<?xml version="1.0" encoding="iso-8859-1"?>

<!DOCTYPE project [

Apache Ant build.xml file for Selenium tests

</description>

</fileset>

</path>

<!-- target name="start-selenium-server">

</target-->

</path>

</target>

</tstamp>

</condition>

</target>

</target>

</delete>

</target>

<echo>

ant run will execute the test

</echo>

</target>

</path>

</delete>

</fileset>

</batchtest>

</junit>

</fileset>

</junitreport>

</target>

</project>

Apache Ant Compile/Clean

D:\Eclipse\Java\Module8_Junit_Ant>ant clean

Buildfile: D:\Eclipse\Java\Module8_Junit_Ant\build.xml

clean:

[delete] Deleting directory D:\Eclipse\Java\Module8_Junit_Ant\build

BUILD SUCCESSFUL

Total time: 1 second

D:\Eclipse\Java\Module8_Junit_Ant>ant compile

Buildfile: D:\Eclipse\Java\Module8_Junit_Ant\build.xml

setClassPath:

init:

clean:

compile:

[echo] making directory...

[mkdir] Created dir: D:\Eclipse\Java\Module8_Junit_Ant\build

[echo] classpath-----: D:\jars\commons-io-2.4.jar:D:\jars\jdom-2.0.2.jar:D:

\jars\junit-4.11.jar:D:\jars\jxl.jar:D:\jars\selenium-server-standalone-2.25.0.j

ar:D:\jars\testng-6.7.jar:D:\jars\tools.jar

[echo] compiling...

[javac] D:\Eclipse\Java\Module8_Junit_Ant\build.xml:55: warning: 'includeant

runtime' was not set, defaulting to build.sysclasspath=last; set to false for re

peatable builds

[javac] Compiling 5 source files to D:\Eclipse\Java\Module8_Junit_Ant\build

BUILD SUCCESSFUL

Total time: 6 seconds

Run

C:\Eclipse\Project>ant run

D:\Eclipse\Java\Module8_Junit_Ant>ant run

Buildfile: D:\Eclipse\Java\Module8_Junit_Ant\build.xml

run:

[junit] Running testcases.FirstTestCase

[junit] Tests run: 3, Failures: 0, Errors: 0, Time elapsed: 0.659 sec

[junit] Running testcases.ParameterizedTestCase

[junit] Tests run: 2, Failures: 0, Errors: 0, Time elapsed: 0.684 sec

[junit] Running testcases.SecondTestCase

[junit] Tests run: 3, Failures: 0, Errors: 0, Time elapsed: 0.637 sec

[junit] Running testcases.UnderstandingAssertions

[junit] Tests run: 2, Failures: 3, Errors: 0, Time elapsed: 0.676 sec

[junit] Test testcases.UnderstandingAssertions FAILED

[junitreport] Processing D:\Eclipse\Java\reports\TESTS-TestSuites.xml to C:\User

s\SiloSix\AppData\Local\Temp\null276535517

[junitreport] Loading stylesheet jar:file:/C:/apache-ant-1.8.4/lib/ant-junit.jar

!/org/apache/tools/ant/taskdefs/optional/junit/xsl/junit-frames.xsl

[junitreport] Transform time: 2927ms

[junitreport] Deleting: C:\Users\SiloSix\AppData\Local\Temp\null276535517

BUILD SUCCESSFUL

Total time: 15 seconds

Properties of testcases.FirstTestCase

Name	Value
ant.core.lib	C:\apache-ant-1.8.4\lib\ant.jar
ant.file	D:\Eclipse\Java\Module8_Junit_Ant\build.xml
ant.file.Module_Junit_Ant	D:\Eclipse\Java\Module8_Junit_Ant\build.xml
ant.file.type	file
ant.file.type.Module_Junit_Ant	file
ant.home	C:\apache-ant-1.8.4\bin\..
ant.java.version	1.6
ant.library.dir	C:\apache-ant-1.8.4\lib
ant.project.default-target	useage
ant.project.invoked-targets	run
ant.project.name	Module_Junit_Ant
ant.version	Apache Ant(TM) version 1.8.4 compiled on May 22 2012
awt.toolkit	sun.awt.windows.WToolkit
basedir	D:\Eclipse\Java\Module8_Junit_Ant
file.encoding	Cp1252
file.encoding.pkg	sun.io
file.separator	\
java.awt.graphicsenv	sun.awt.Win32GraphicsEnvironment
java.awt.printerjob	sun.awt.windows.WPrinterJob
java.class.path	D:\Eclipse\Java\Module8_Junit_Ant\build;D:\jars\commons-io-2.4.jar;D:\jars\jdom-2.0.2.jar;D:\jars\junit-4.11.jar;D:\jars\jxl.jar;D:\jars\selenium-server-standalone-2.25.0.jar;D:\jars\testng-6.7.jar;D:\jars\tools.jar;D:\Eclipse\Java\Module8_Junit_Ant;C:\Program Files (x86)\QuickTime\QTSystem\QTJava.zip;C:\apache-ant-1.8.4\lib\ant-launcher.jar;C:\apache-ant-1.8.4\lib\ant.jar;C:\apache-ant-1.8.4\lib\ant-junit.jar;C:\apache-ant-1.8.4\lib\ant-junit4.jar
java.class.version	50.0
java.endorsed.dirs	C:\Program Files\Java\jre6\lib\endorsed
java.ext.dirs	C:\Program Files\Java\jre6\lib\ext;C:\Windows\Sun\Java\lib\ext
java.home	C:\Program Files\Java\jre6
java.io.tmpdir	C:\Users\SiloSix\AppData\Local\Temp\
java.library.path	C:\Program Files\Java\jre6\bin;C:\Windows\Sun\Java\bin;C:\Windows\system32;C:\Windows;C:\Windows\system32;C:\Windows;C:\Windows\System32\Wbem;C:\Windows\System32\WindowsPowerShell\v1.0\;C:\Program Files (x86)\ATI Technologies\ATI.ACE\Core-Static;C:\Program Files (x86)\Common Files\Acronis\SnapAPI\;C:\Program Files (x86)\Microsoft SQL Server\100\Tools\Binn\;C:\Program Files\Microsoft SQL Server\100\Tools\Binn\;C:\Program Files\Microsoft SQL Server\100\DTS\Binn\;C:\Program Files (x86)\QuickTime\QTSystem\;C:\Program Files (x86)\Android\android-sdk\tools;C:\Program Files (x86)\Android\android-sdk\platform-tools;C:\Program Files (x86)\Java\jre6\bin;C:\Program Files (x86)\Java\jre6\bin\client;D:\Python27;C:\Program Files\TortoiseSVN\bin;C:\Program Files (x86)\Mozilla Firefox;C:\Program Files\Java\jdk1.6.0_33\bin;C:\apache-ant-1.8.4\bin;;.
java.runtime.name	Java(TM) SE Runtime Environment
java.runtime.version	1.6.0_33-b03
java.specification.name	Java Platform API Specification
java.specification.vendor	Sun Microsystems Inc.
java.specification.version	1.6
java.vendor	Sun Microsystems Inc.
java.vendor.url	http://java.sun.com/
java.vendor.url.bug	http://java.sun.com/cgi-bin/bugreport.cgi
java.version	1.6.0_33
java.vm.info	mixed mode
java.vm.name	Java HotSpot(TM) 64-Bit Server VM
java.vm.specification.name	Java Virtual Machine Specification
java.vm.specification.vendor	Sun Microsystems Inc.
java.vm.specification.version	1.0
java.vm.vendor	Sun Microsystems Inc.
java.vm.version	20.8-b03
line.separator
os.arch	amd64
os.name	Windows 7
os.version	6.1
path.separator	;
sun.arch.data.model	64
sun.boot.class.path	C:\Program Files\Java\jre6\lib\resources.jar;C:\Program Files\Java\jre6\lib\rt.jar;C:\Program Files\Java\jre6\lib\sunrsasign.jar;C:\Program Files\Java\jre6\lib\jsse.jar;C:\Program Files\Java\jre6\lib\jce.jar;C:\Program Files\Java\jre6\lib\charsets.jar;C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;C:\Program Files\Java\jre6\classes
sun.boot.library.path	C:\Program Files\Java\jre6\bin
sun.cpu.endian	little
sun.cpu.isalist	amd64
sun.desktop	windows
sun.io.unicode.encoding	UnicodeLittle
sun.java.command	org.apache.tools.ant.taskdefs.optional.junit.JUnitTestRunner testcases.FirstTestCase filtertrace=true haltOnError=false haltOnFailure=false formatter=org.apache.tools.ant.taskdefs.optional.junit.SummaryJUnitResultFormatter showoutput=false outputtoformatters=true logfailedtests=true logtestlistenerevents=false formatter=org.apache.tools.ant.taskdefs.optional.junit.XMLJUnitResultFormatter,D:\Eclipse\Java\reports\TEST-testcases.FirstTestCase.xml crashfile=D:\Eclipse\Java\Module8_Junit_Ant\junitvmwatcher1328204574902432774.properties propsfile=D:\Eclipse\Java\Module8_Junit_Ant\junit7241907459533418942.properties
sun.java.launcher	SUN_STANDARD
sun.jnu.encoding	Cp1252
sun.management.compiler	HotSpot 64-Bit Tiered Compilers
sun.os.patch.level	Service Pack 1
test.dest	D:\Eclipse\Java\Module8_Junit_Ant/build
test.reportsDir	D:/Eclipse/Java/reports
test.src	D:\Eclipse\Java\Module8_Junit_Ant/src
user.country	US
user.dir	D:\Eclipse\Java\Module8_Junit_Ant
user.home	C:\Users\SiloSix
user.language	en
user.name	SiloSix
user.timezone
user.variant
ws.home	D:\Eclipse\Java\Module8_Junit_Ant
ws.jars	D:/jars

Java: Guide: JUnit Workbook 2012

JUnit Workbook(2012)

Links:

JUNIT

Annotations

Handling Assertions

Example

Parameterizing

Example

Test Listeners

Custom Runners

Apache Ant

Installation & Config

Error Message on tools.jar

build.xml

Example includes for test classes

Error on Ant Run (Compile OK)

Compile/Clean/Run

Creating Ant Batchfile

TestNG

Apendices

JUnit Test Example 1(Simple)

Test Suite Runner Class (Simple)

Test Case Example 1 (Simple)

JUnit Test Example 2

MyTestSuiteRunner.java

FirstTestCase.java

SecondTestCase.java

ParameterizedTestCase.java

UnderstandingAssertions.java

Apache ANT Buildfile (build.xml)

Apache Ant Compile/Clean

Run

Properties of testcases.FirstTestCase

Java: Guide: JUnit Workbook 2012
