SoapUI Test Framework Guide

Setup

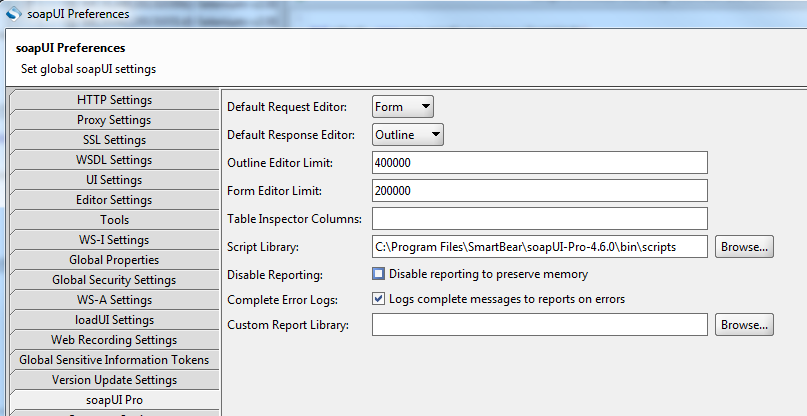

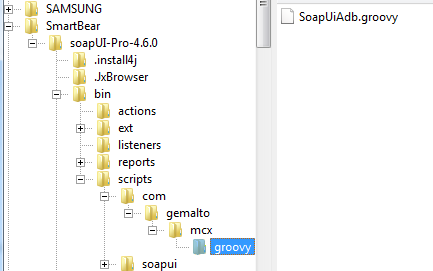

SoapUI Script Library

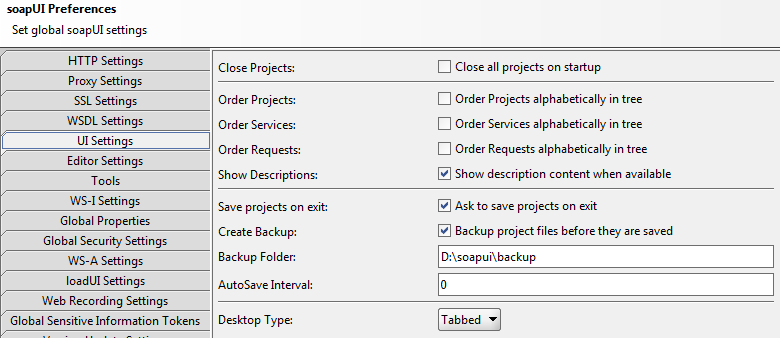

Backup Folder



Eclipse ADT for Android Support

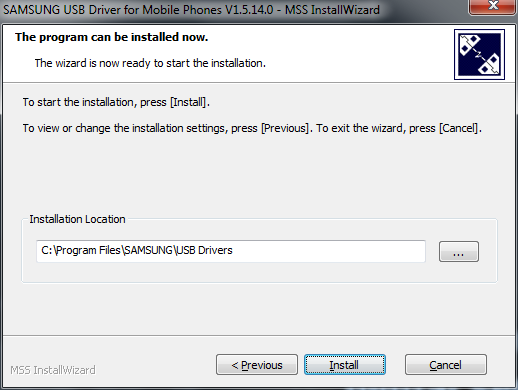

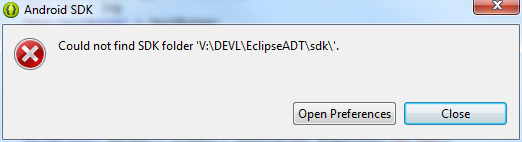

Android SDK/ADB







SOAPUI Walkthrough

Create a SOAPUI project from WSDL



• Go to Projects in the tree
• And select New soapUI Project

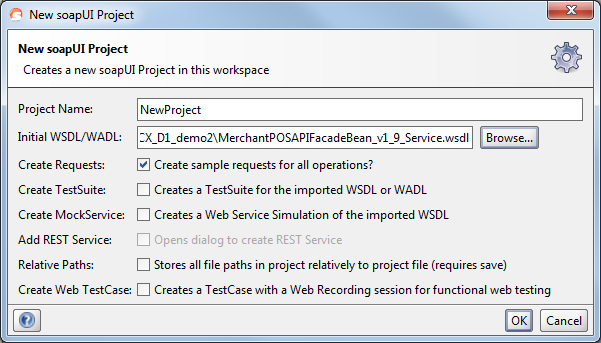

• Give the project a name, then click ‘Browse’ and select the appropriate WSDL file.
• Some WSDLs reference an XSD file that provides definitions to the data in the WSDL contract.

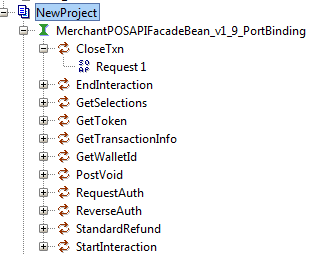

• SOAPUI will create a ‘PortBinding’ branch on the tree with all the requests in the WSDL contract

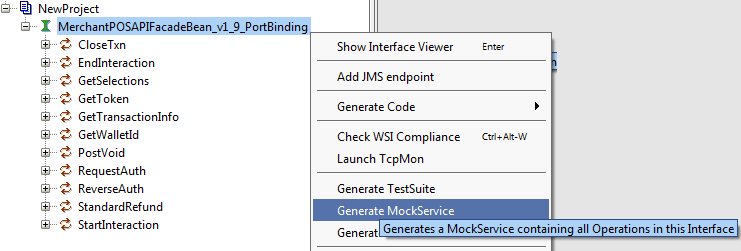

Create and Use a Mock Service



• A MockService will be created that contains all the responses in the WSDL contract/PortBinding
• It will create a service on the 8088 port by default. This can be changed if needed.



• Provide a name for the MockService, it is advised to keep the name short so it is easily recognized in the program





• MockService is created but must be started to provide responses







• The hour glass will move indicating the service is running

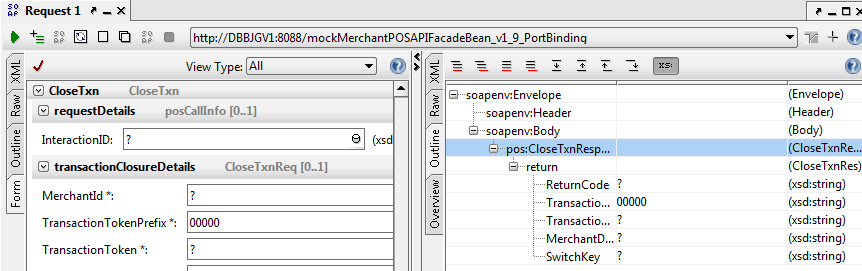

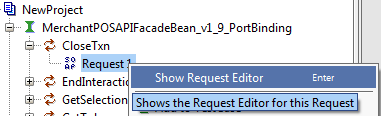

• Next assign the PortBinding request to the MockService instead of the URL in the WSDL contract







• Run the request and a response should be sent from the MockService

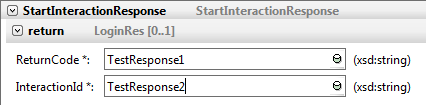

Editing a MockService Response

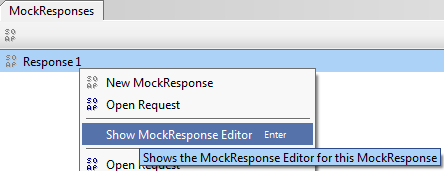

• Open a Response under the MockService







• Update the fields



• Go to the applicable Request [StartInteraction]



• Make sure to point the request to the MockService endpoint!!!



• Run the request to see the updated Response data









Create Test Suite

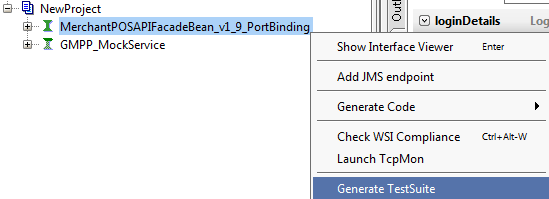

• Go to the PortBinding branch in the tree and select Generate TestSuite

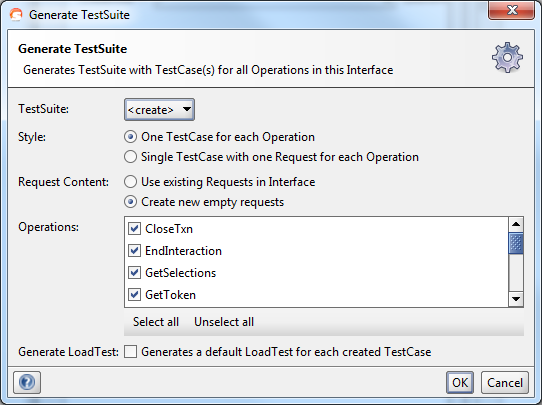

• While we really don’t need to create empty requests, leave them checked for learning purposes





• Give it a name



• The test suite will be created and added to the project tree

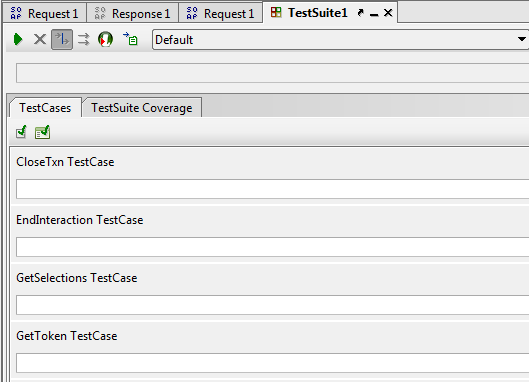

• Open the TestSuite and each test case will be listed











Create a Test Case

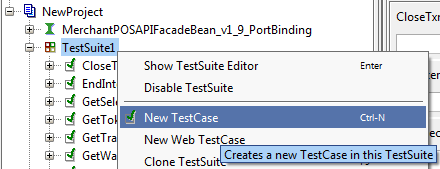

• Go to the Test Suite in the tree and select New Test Case





• The Test Case will be created



Add Test Step

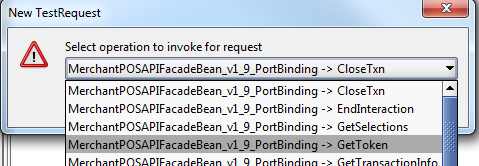

• Add a Test Step. Test Request is a SOAP request.

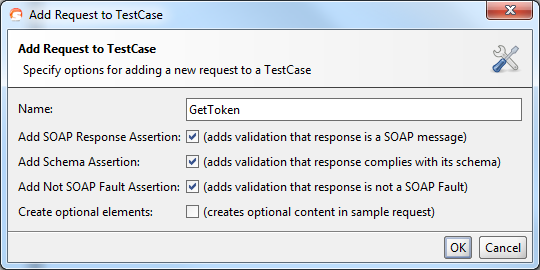

• A confirmation window will appear with 3 Assertions included. Leave Assertions check ( but you can add them later also)





• The new Test Step will be added to the tree



• Open the Test Step editor







• Select Add for ‘requestDetails’ and ‘transactionTokenDetails’









• Now you will see all the field in the request

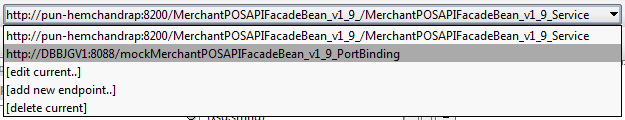

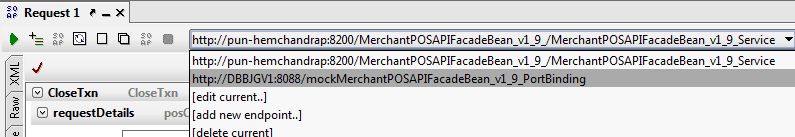

• Change the URL to point to the Mock Service and run the Test Step to get a response



• You can see an Assertion Failed, making the SOAP icon red



• At the bottom of the Test Case form, we can see the ‘Schema Compliance – FAILED’

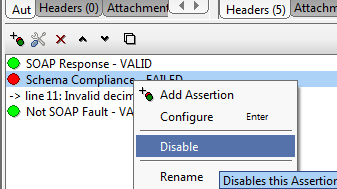

• At this point just disable the Assertion so the test will execute successfully.
• Tweaking Assertions should be done once the Test Case is fully setup







• Run the test step again and SUCCESS!!

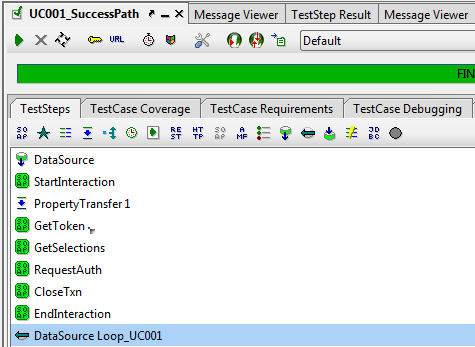

• Open the Test Case editor



• The new Test Step is now present with green icon

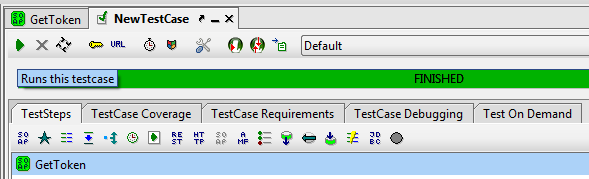

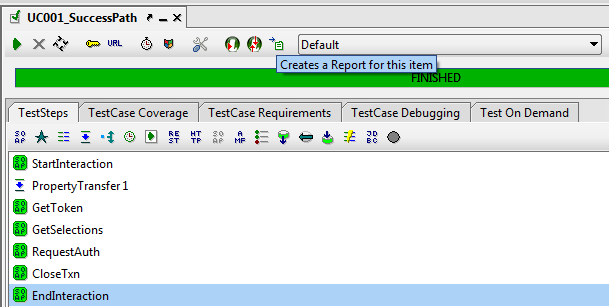

• Run the Test Case and the status at the top should be GREEN with FINISHED



• At this point, just add more test steps to complete the Test Case….





Set Test Case Endpoint ( For ALL Test Steps )

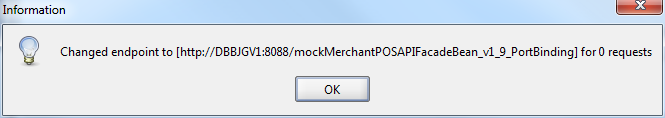

• While each test Step can be directed to a separate URL, it is best practice to set it one time at the Test Case level.













Reviewing Test Case Requests and Responses

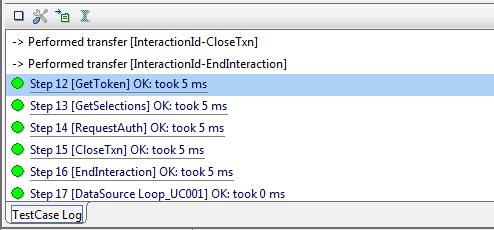

• Run a Test Case to generate a Test Case Log



• Click on one of the executed Test Steps [GetToken] to bring up the Message Viewer

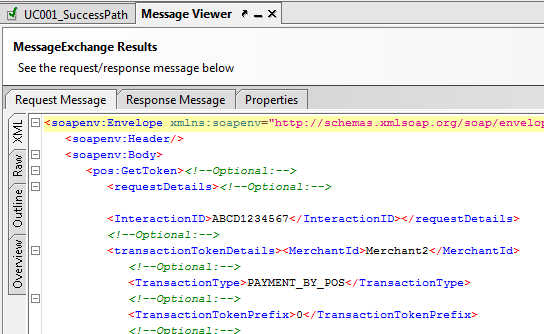

Message Viewer – Request Message

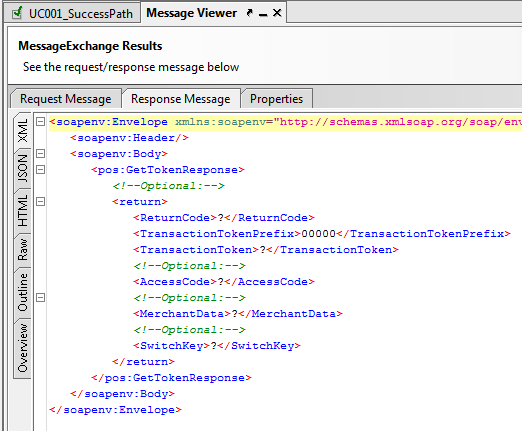

Message Viewer – Response Message

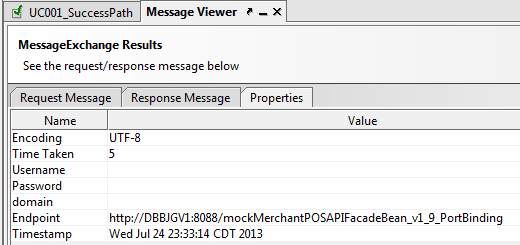

Message Viewer - Properties



Set Credentials for Test Case URL

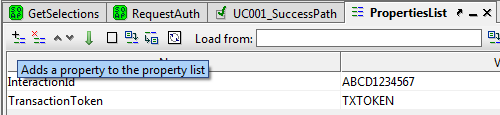

Properties List



















${PropertiesList#TransactionToken}











Transfer Properties



• Go to the MockService Responses in the tree



• Open ‘StartInteraction ‘

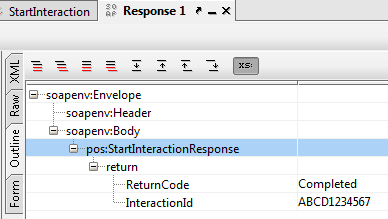

• Setup MockService Response for StartInteraction





• We’ll set it to ABCD1234567..

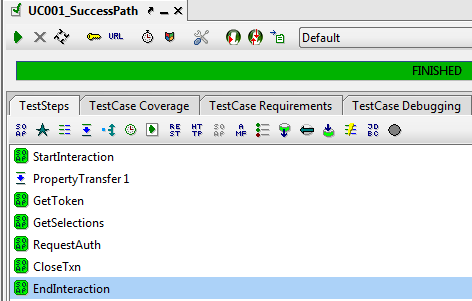

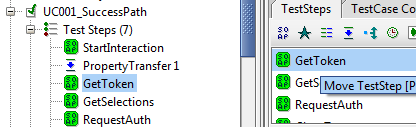

• Open the Test Case that has multiple Test Steps





• Open Editor

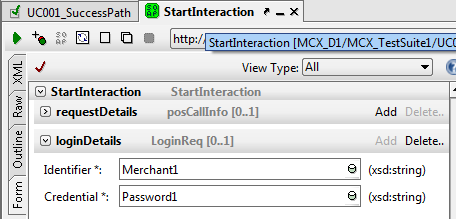

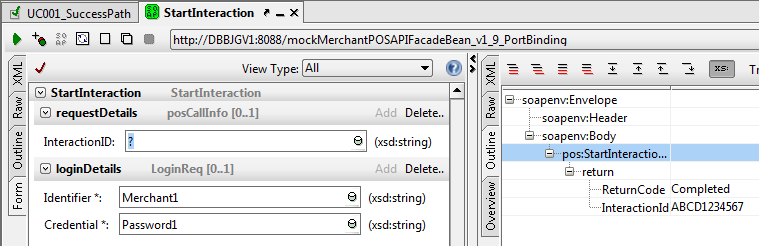

• Add the StartInteraction, requestDetails, InteractionID field





• It now shows….



• Put ‘?’ in the field or it will automatically disappear



Make sure the endpoint is set to the MockService and Run the request to get a response from the MockService

The Right Side will be empty until request is run ONCE and receives a response

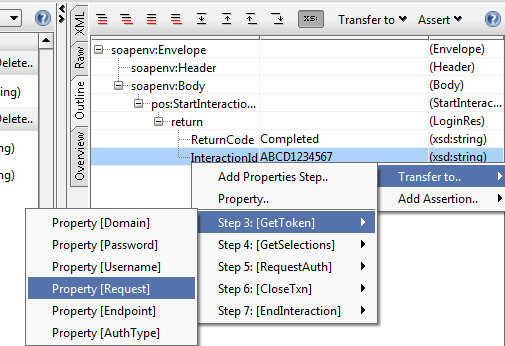

• Now that we have a response, we tell SOAPUI to transfer a field from the Response to the next request.
• In this case we want to Transfer ‘InteractionId’ to GetToken request ‘InteractionID’ ( note the different cases of ‘Id’ and ‘ID’

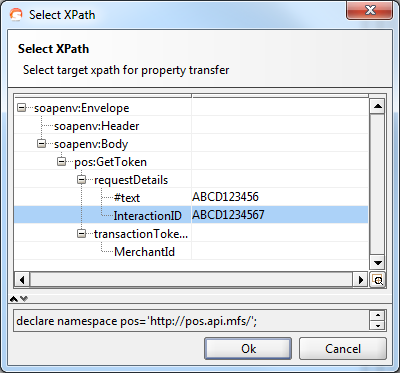

• SOAPUI will ask for more information; where to SEND the Transferred data
• In this example, send to ‘InteractionID’

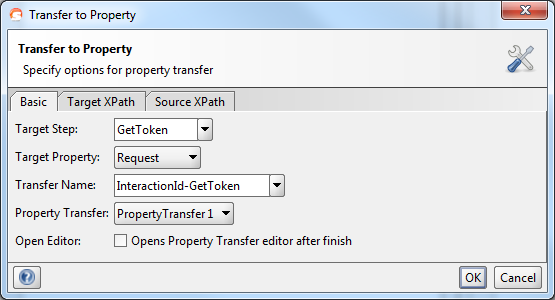

• SOAPUI will ask for more information and/or confirm the setting before creating the Property Transfer
• We’re sending it to the ‘GetToken’ Step/Request
• It is going to the Request portion of the Step





• Update the name to ‘Field’-‘RequestName’ so it can be easily identified

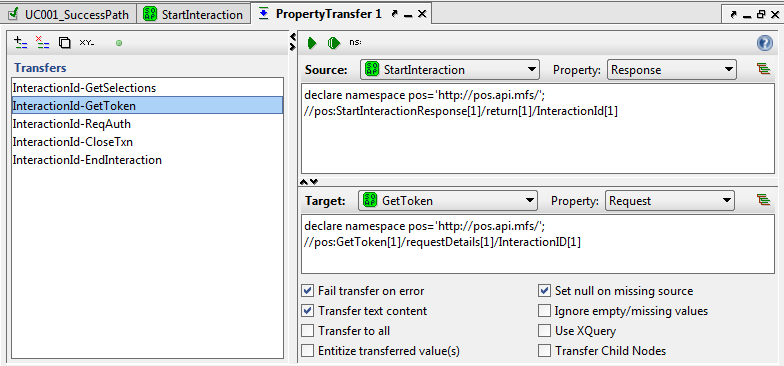

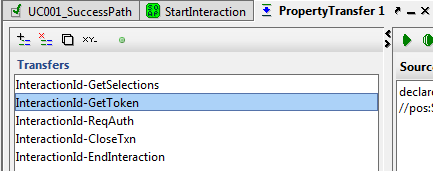

• Now the ‘InteractionId-GetToken’ property transfer has been created and added to already existing transfers





• The complete tab
• SOAPUI uses XPATH to identify items within the XML Response AND the target XML Request ( GetToken )
• For the example:

1. Run StartInteraction Request and get ‘InteractionId’
2. Transfer ‘InteractionId’ to GetToken Request [ InteractionID ] field

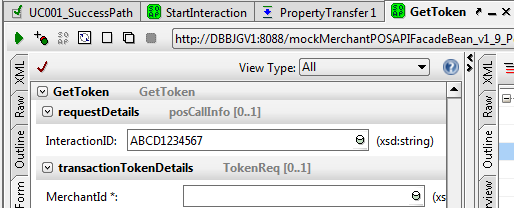

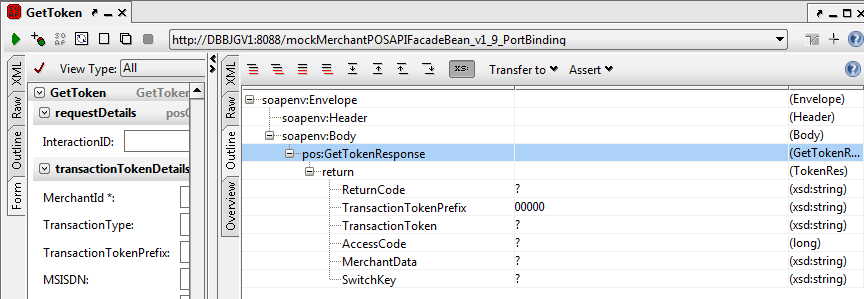

• After running the Test Case, go to the GetToken Step and open it in the editor



• You will see the newly transferred value





• Goto MockService



• Open Start Interation







• Setup MockService Response for StartInteraction

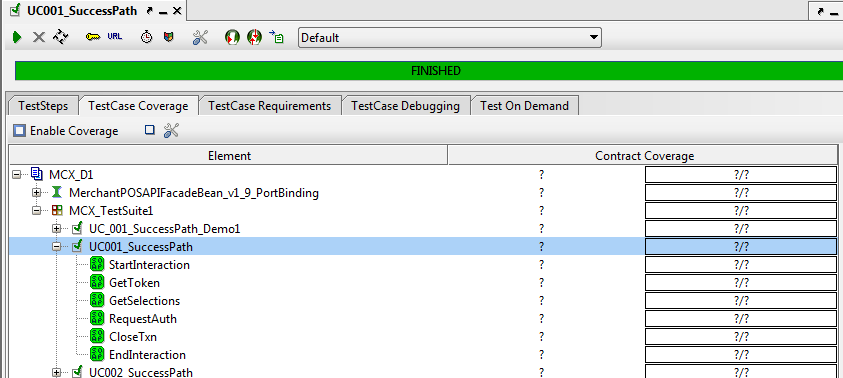

Test Coverage: WSDL Contract

• This feature is helpful, but may not be required
• Each request is created from the WSDL contract and it is helpful to know how much of the contract is used in test case







• Select Enable Coverage and run the Test Case again







SOAPUI Test Reports







Test Case Report

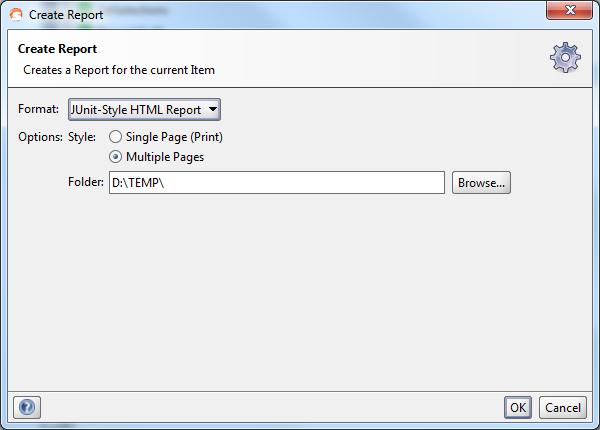

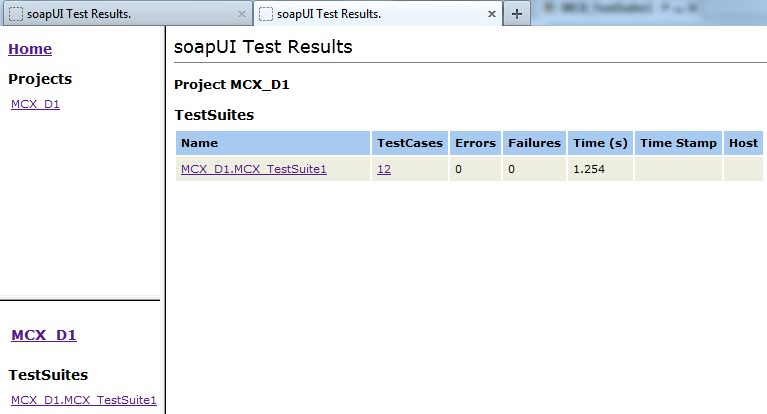

J-Unit HTML Report













Integrating Selenium



Configuring SoapUI for using Selenium

• Download the latest Selenium FireFox Standalone server from seleniumhq.org

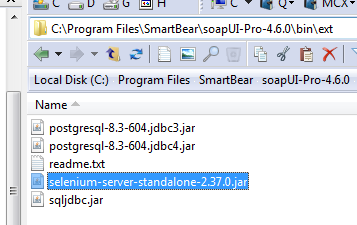

• Place the JAR file under <soapUI>\bin\ext
• Start/Re-Start SoapUI to pick up the file

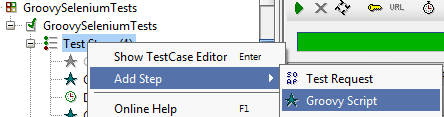

• Create a new Groovy Test Step

• Paste the following code block into the script to test if SoapUI finds the Selenium JAR file

import org.openqa.selenium.By
import org.openqa.selenium.WebDriver
import org.openqa.selenium.WebElement
import org.openqa.selenium.firefox.FirefoxDriver
import org.openqa.selenium.support.ui.ExpectedCondition
import org.openqa.selenium.support.ui.WebDriverWait

// Create a new instance of the Firefox driver
// Notice that the remainder of the code relies on the interface,
// not the implementation.
WebDriver driver = new FirefoxDriver()
driver.get("http://www.google.com")
//driver.quit()

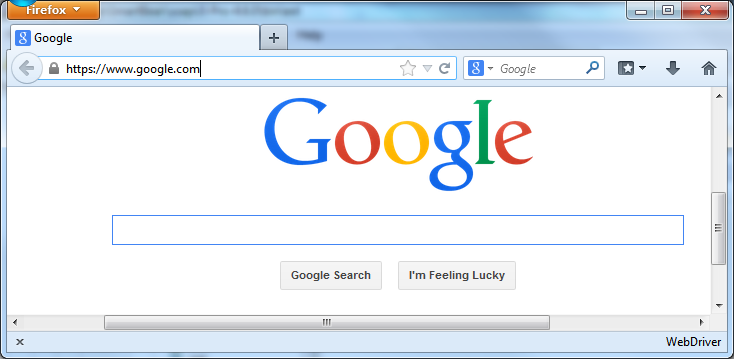

• The following FireFox browser window should appear



• You have successfully called selenium commands from SoapUI!!
• Note: Remove the ‘//’ from the //driver.quit() line if you want the browser to close when done



WebDriver Status

• When the browser is executing commands, the ‘WebDriver’ text will show in RED









Interacting with Selenium browser elements



• Create another Groovy Test Step and paste in the following code to suspend a Merchant
• Note: requires the Test Suite Property ‘MerchantId’ with a valid merchant ID value



import org.openqa.selenium.By

import org.openqa.selenium.WebDriver

import org.openqa.selenium.WebElement

import org.openqa.selenium.firefox.FirefoxDriver

import org.openqa.selenium.support.ui.ExpectedCondition

import org.openqa.selenium.support.ui.WebDriverWait


// Create a new instance of the Firefox driver

// Notice that the remainder of the code relies on the interface,

// not the implementation.

WebDriver driver = new FirefoxDriver()



driver.get("https://127.0.0.1:18201/AdminApp/rest/login")

WebElement element = driver.findElement(By.name("identifier"))

element.sendKeys("Admin")

element = driver.findElement(By.name("credential"))

element.sendKeys("9491iI3")

element = driver.findElement(By.id("loginBtn"))

element.click()


def thisMerch     = testRunner.testCase.testSuite.getPropertyValue("MerchantId")

//driver.get("https://127.0.0.1:18201/AdminApp/page/merchant/310HQQ13VBB4/merchant-details.xhtml")

driver.get("https://127.0.0.1:18201/AdminApp/page/merchant/${thisMerch}/merchant-details.xhtml")

element = driver.findElement(By.id("suspend"))

element.click()




//Close the browser

//driver.quit()







Example of Selenium ScreenShot







Selenium Screenshot requires extra imports:

//For ScreenCap

import java.io.File

import org.apache.commons.io.FileUtils

import org.openqa.selenium.TakesScreenshot

import org.openqa.selenium.OutputType

import java.util.concurrent.TimeUnit





Syntax for driver.getScreenShotAs

//Get TimeStamp and Save Screenshot

Thread.sleep(3000)

startDate = new Date()

thisDate = startDate.format("yyyy_MMdd'_'HHmmss_SSS")

screen = driver.getScreenshotAs(OutputType.FILE)

FileUtils.copyFile(screen, new File("d:/temp/${thisDate}-screen1.png"))







Example usage



import org.openqa.selenium.By

import org.openqa.selenium.*

import org.openqa.selenium.WebDriver

import org.openqa.selenium.WebElement

import org.openqa.selenium.firefox.FirefoxDriver

import org.openqa.selenium.support.ui.ExpectedCondition

import org.openqa.selenium.support.ui.WebDriverWait


//For ScreenCap

import java.io.File

import org.apache.commons.io.FileUtils

import org.openqa.selenium.TakesScreenshot

import org.openqa.selenium.OutputType

import java.util.concurrent.TimeUnit


def filePath = testRunner.testCase.testSuite.project.getPropertyValue("logfilePath")

def thisMerch = testRunner.testCase.testSuite.getPropertyValue("MerchantId")


// Create a new instance of the Firefox driver

// Notice that the remainder of the code relies on the interface,

// not the implementation.

WebDriver driver = new FirefoxDriver()

driver.manage().timeouts().implicitlyWait(60, TimeUnit.SECONDS)


// Open Admin App and Login

driver.get("https://127.0.0.1:18201/AdminApp/rest/login")


// Login

WebElement element = driver.findElement(By.name("identifier"))

element.sendKeys("Admin")

element = driver.findElement(By.name("credential"))

element.sendKeys("9491iI3")

element = driver.findElement(By.id("loginBtn"))

element.click()


// Merchant Details By MerchantId

driver.get("https://127.0.0.1:18201/AdminApp/page/merchant/${thisMerch}/merchant-details.xhtml")



// Check and Release Suspension

element = driver.findElement(By.id("releaseSuspension"))

if (element.isDisplayed() ) {

        log.info "Merchant is Suspended"

        } else {

        element = driver.findElement(By.id("suspend"))

        if (element.isDisplayed() ) {

                log.info "Merchant is Not Suspended"

                element.click()

        }

}


//Get TimeStamp and Save Screenshot

Thread.sleep(3000)

startDate = new Date()

thisDate = startDate.format("yyyy_MMdd'_'HHmmss_SSS")

screen = driver.getScreenshotAs(OutputType.FILE)

FileUtils.copyFile(screen, new File("d:/temp/${thisDate}-screen1.png"))


// Check and Suspend

element = driver.findElement(By.id("releaseSuspension"))

if (element.isDisplayed() ) {

        log.info "Merchant is already Suspended"

        } else {

        element = driver.findElement(By.id("suspend"))

        if (element.isDisplayed() ) {

                log.info "Merchant is Not Suspended, Suspending...."

                element.click()

        }

}



//Get TimeStamp and Save Screenshot

Thread.sleep(3000)

def startDate = new Date()

thisDate = startDate.format("yyyy_MMdd'_'HHmmss_SSS")

def screen = driver.getScreenshotAs(OutputType.FILE)

FileUtils.copyFile(screen, new File("d:/temp/${thisDate}-screen2.png"))


// Check and Release Suspension

element = driver.findElement(By.id("releaseSuspension"))

if (element.isDisplayed() ) {

        log.info "Merchant is Suspended"

        element.click()

        } else {

        element = driver.findElement(By.id("suspend"))

        if (element.isDisplayed() ) {

                log.info "Merchant is Not Suspended"

        }

}


//Get TimeStamp and Save Screenshot

Thread.sleep(3000)

startDate = new Date()

thisDate = startDate.format("yyyy_MMdd'_'HHmmss_SSS")

screen = driver.getScreenshotAs(OutputType.FILE)

FileUtils.copyFile(screen, new File("d:/temp/${thisDate}-screen3.png"))




//Close the browser

//driver.quit()





Finding a table and Iterating its rows ( for Payment Pockets )

Example

// Pass values to an array, THEN use array to get links...


//Detect Pockets and push to array

for (int i=1; i<rowCount+1; i++){

        thisCustPockets = driver.findElement(By.xpath("//table[@id='default-pocket-table']/tbody/tr[${i}]"))

        thisCustPocket = thisCustPockets.getAttribute('pocketid')

        log.info "Current Pocket: " + thisCustPocket

        pocketList.add(thisCustPocket)

}


// Suspend via Iteration

for (j in pocketList){

        driver.get("https://127.0.0.1:18201/AdminApp/page/customer/${thisCust}/pocket/${j}.xhtml")

        log.info j + ": Checking visible links"

        Thread.sleep(3000)

        element = driver.findElement(By.id("releaseSuspension"))

        if (element.isDisplayed() ) {

                // RELEASE

                log.info "Customer Pocket -${j}- is already Suspended"

        } else {

                // SUSPEND

                element = driver.findElement(By.id("suspend"))

                if (element.isDisplayed() ) {

                        log.info "Customer Pocket -${j}- is Not Suspended"

                        element.click()

                        log.info "Customer Pocket -${j}- is NOW Suspended"

                }

        }

}





Obtaining and Formatting Date/Time





Example

startDate = new Date()

thisDate = startDate.format("yyyy_MMdd'_'HHmmss_SSS")

screen = driver.getScreenshotAs(OutputType.FILE)

FileUtils.copyFile(screen, new File("d:/temp/${thisDate}-screen2.png"))







Integrating Eclipse Android ADT with SoapUI





Download:

• Android ADT/Eclipse: (adt-bundle-windows-x86-20130729)
• Android SDK
• Samsung USB Drivers (Samsung_USB_Driver_for_Mobile_Phones_v1.5.14.0.exe)
• http://www.samsung.com/us/support/downloads



In Eclipse:

Get Groovy         http://dist.springsource.org/release/GRECLIPSE/e4.3/

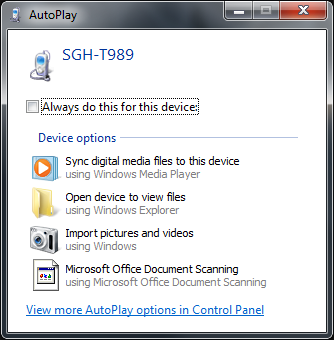

Install  Samsung USB Drivers



























ADB: UI Interactions

input text <string>

input keyevent <key code number or name>

input tap <x> <y>

input swipe <x1> <y1> <x2> <y2>





ADB: Sending buttons to Android



http://developer.android.com/reference/android/view/KeyEvent.html

adb shell input keyevent 3        HOME



ADB: Sending touches to Android

<EclipseADT>/sdk/platform-tools/

adb shell input tap 245        440

adb shell input tap 245        540

adb shell input tap 245        640

adb shell input tap 245        750

ADB: Swiping Screen

adb shell swipe 240        770 240 240



Groovy Script Library and Groovy Classes

Script Library Location









SoapUI Extensions/JAR file locations



• When extending SoapUI with custom features or including other sources, place files under the <soapUI>/bin/ext folder
• Restart SoapUI if it doesn’t immediately recognize the files







Creating and Calling a Groovy Class in the Library

• By creating the following groovy class, calls can be made from ANY Groovy script in the soap project:



Class to Send a HOME key press

package com.gemalto.mcx.groovy


class SoapUiAdb {

        def adbexe

        SoapUiAdb(){

                adbexe = "V:\\DEVL\\EclipseADT\\sdk\\platform-tools\\adb.exe"

        }



        def AdbShellExec(){

                //A string can be executed in the standard java way:

                def command = """${adbexe} shell input keyevent 3"""// Create the String

                //log.info "Executing: ${command}"

                def proc = command.execute()        // Call *execute* on the string

                proc.waitFor()                                        // Wait for the command to finish



                // Obtain status and output

                //log.info "return code: ${ proc.exitValue()}"

                //log.info "stderr: ${proc.err.text}"

                //log.info "stdout: ${proc.in.text}" // *out* from the external program is *in* for groovy

        }

}



Calling the class from SoapUI Groovy Script

def adbcall = new com.gemalto.mcx.groovy.SoapUiAdb()

adbcall.AdbShellExec()







Passing the testRunner and log objects to external Groovy Scripts



Call:

new com.gemalto.mcx.groovy.SoapUiSelenium(log,testRunner).MFS_Login()



the above call is a compound statement

1. Instantiate the class

1. new com.gemalto.mcx.groovy.SoapUiSelenium(log,testRunner)
2. pass log Object = for log.info
3. pass testRunner = for access to properties, and all things soapui

2. Call the method

1. .MFS_Login()







Class and Method:

package com.gemalto.mcx.groovy


class SoapUiSelenium {



        /*

         *  Calls to this CLASS MUST pass the *log* and *testRunner* objects

         *   log: used for sending log info to SoapUI

         *   testRunner: provides hooks for Test Case/Suite/Project/Environment Properties

         *     along with anything that is accessible by using the 'Groovy Script' Test Step

         *     directly within SoapUI

         */

        def log;

        def testRunner;

        WebDriver testBrowser = new FirefoxDriver();


                def SoapUiSelenium(log, testRunner){

                this.log = log;

                this.testRunner = testRunner;

                // Create a new instance of the Firefox driver

                //WebDriver driver = new FirefoxDriver()

                testBrowser.manage().window().setPosition(new Point(20,20))

                testBrowser.manage().window().setSize(new Dimension(750,500))



        }



        def MFS_Login(){

                // Open Admin App and Login

                testBrowser.get("https://127.0.0.1:18202/AdminApp/rest/login")

                WebElement element = testBrowser.findElement(By.name("identifier"))

                element.sendKeys("soapui_ma")

                element = testBrowser.findElement(By.name("credential"))

                element.sendKeys("SoapUI_01")

                element = testBrowser.findElement(By.id("loginBtn"))

                element.click()



        }





Appendices



ADB: keyevents



Constants
int	ACTION_DOWN	getAction() value: the key has been pressed down.
int	ACTION_MULTIPLE	getAction() value: multiple duplicate key events have occurred in a row, or a complex string is being delivered.
int	ACTION_UP	getAction() value: the key has been released.
int	FLAG_CANCELED	When associated with up key events, this indicates that the key press has been canceled.
int	FLAG_CANCELED_LONG_PRESS	Set when a key event has FLAG_CANCELED set because a long press action was executed while it was down.
int	FLAG_EDITOR_ACTION	This mask is used for compatibility, to identify enter keys that are coming from an IME whose enter key has been auto-labelled "next" or "done".
int	FLAG_FALLBACK	Set when a key event has been synthesized to implement default behavior for an event that the application did not handle.
int	FLAG_FROM_SYSTEM	This mask is set if an event was known to come from a trusted part of the system.
int	FLAG_KEEP_TOUCH_MODE	This mask is set if we don't want the key event to cause us to leave touch mode.
int	FLAG_LONG_PRESS	This flag is set for the first key repeat that occurs after the long press timeout.
int	FLAG_SOFT_KEYBOARD	This mask is set if the key event was generated by a software keyboard.
int	FLAG_TRACKING	Set for ACTION_UP when this event's key code is still being tracked from its initial down.
int	FLAG_VIRTUAL_HARD_KEY	This key event was generated by a virtual (on-screen) hard key area.
int	FLAG_WOKE_HERE	This mask is set if the device woke because of this key event.
int	KEYCODE_0	Key code constant: '0' key.
int	KEYCODE_1	Key code constant: '1' key.
int	KEYCODE_2	Key code constant: '2' key.
int	KEYCODE_3	Key code constant: '3' key.
int	KEYCODE_3D_MODE	Key code constant: 3D Mode key.
int	KEYCODE_4	Key code constant: '4' key.
int	KEYCODE_5	Key code constant: '5' key.
int	KEYCODE_6	Key code constant: '6' key.
int	KEYCODE_7	Key code constant: '7' key.
int	KEYCODE_8	Key code constant: '8' key.
int	KEYCODE_9	Key code constant: '9' key.
int	KEYCODE_A	Key code constant: 'A' key.
int	KEYCODE_ALT_LEFT	Key code constant: Left Alt modifier key.
int	KEYCODE_ALT_RIGHT	Key code constant: Right Alt modifier key.
int	KEYCODE_APOSTROPHE	Key code constant: ''' (apostrophe) key.
int	KEYCODE_APP_SWITCH	Key code constant: App switch key.
int	KEYCODE_ASSIST	Key code constant: Assist key.
int	KEYCODE_AT	Key code constant: '@' key.
int	KEYCODE_AVR_INPUT	Key code constant: A/V Receiver input key.
int	KEYCODE_AVR_POWER	Key code constant: A/V Receiver power key.
int	KEYCODE_B	Key code constant: 'B' key.
int	KEYCODE_BACK	Key code constant: Back key.
int	KEYCODE_BACKSLASH	Key code constant: '\' key.
int	KEYCODE_BOOKMARK	Key code constant: Bookmark key.
int	KEYCODE_BREAK	Key code constant: Break / Pause key.
int	KEYCODE_BRIGHTNESS_DOWN	Key code constant: Brightness Down key.
int	KEYCODE_BRIGHTNESS_UP	Key code constant: Brightness Up key.
int	KEYCODE_BUTTON_1	Key code constant: Generic Game Pad Button #1.
int	KEYCODE_BUTTON_10	Key code constant: Generic Game Pad Button #10.
int	KEYCODE_BUTTON_11	Key code constant: Generic Game Pad Button #11.
int	KEYCODE_BUTTON_12	Key code constant: Generic Game Pad Button #12.
int	KEYCODE_BUTTON_13	Key code constant: Generic Game Pad Button #13.
int	KEYCODE_BUTTON_14	Key code constant: Generic Game Pad Button #14.
int	KEYCODE_BUTTON_15	Key code constant: Generic Game Pad Button #15.
int	KEYCODE_BUTTON_16	Key code constant: Generic Game Pad Button #16.
int	KEYCODE_BUTTON_2	Key code constant: Generic Game Pad Button #2.
int	KEYCODE_BUTTON_3	Key code constant: Generic Game Pad Button #3.
int	KEYCODE_BUTTON_4	Key code constant: Generic Game Pad Button #4.
int	KEYCODE_BUTTON_5	Key code constant: Generic Game Pad Button #5.
int	KEYCODE_BUTTON_6	Key code constant: Generic Game Pad Button #6.
int	KEYCODE_BUTTON_7	Key code constant: Generic Game Pad Button #7.
int	KEYCODE_BUTTON_8	Key code constant: Generic Game Pad Button #8.
int	KEYCODE_BUTTON_9	Key code constant: Generic Game Pad Button #9.
int	KEYCODE_BUTTON_A	Key code constant: A Button key.
int	KEYCODE_BUTTON_B	Key code constant: B Button key.
int	KEYCODE_BUTTON_C	Key code constant: C Button key.
int	KEYCODE_BUTTON_L1	Key code constant: L1 Button key.
int	KEYCODE_BUTTON_L2	Key code constant: L2 Button key.
int	KEYCODE_BUTTON_MODE	Key code constant: Mode Button key.
int	KEYCODE_BUTTON_R1	Key code constant: R1 Button key.
int	KEYCODE_BUTTON_R2	Key code constant: R2 Button key.
int	KEYCODE_BUTTON_SELECT	Key code constant: Select Button key.
int	KEYCODE_BUTTON_START	Key code constant: Start Button key.
int	KEYCODE_BUTTON_THUMBL	Key code constant: Left Thumb Button key.
int	KEYCODE_BUTTON_THUMBR	Key code constant: Right Thumb Button key.
int	KEYCODE_BUTTON_X	Key code constant: X Button key.
int	KEYCODE_BUTTON_Y	Key code constant: Y Button key.
int	KEYCODE_BUTTON_Z	Key code constant: Z Button key.
int	KEYCODE_C	Key code constant: 'C' key.
int	KEYCODE_CALCULATOR	Key code constant: Calculator special function key.
int	KEYCODE_CALENDAR	Key code constant: Calendar special function key.
int	KEYCODE_CALL	Key code constant: Call key.
int	KEYCODE_CAMERA	Key code constant: Camera key.
int	KEYCODE_CAPS_LOCK	Key code constant: Caps Lock key.
int	KEYCODE_CAPTIONS	Key code constant: Toggle captions key.
int	KEYCODE_CHANNEL_DOWN	Key code constant: Channel down key.
int	KEYCODE_CHANNEL_UP	Key code constant: Channel up key.
int	KEYCODE_CLEAR	Key code constant: Clear key.
int	KEYCODE_COMMA	Key code constant: ',' key.
int	KEYCODE_CONTACTS	Key code constant: Contacts special function key.
int	KEYCODE_CTRL_LEFT	Key code constant: Left Control modifier key.
int	KEYCODE_CTRL_RIGHT	Key code constant: Right Control modifier key.
int	KEYCODE_D	Key code constant: 'D' key.
int	KEYCODE_DEL	Key code constant: Backspace key.
int	KEYCODE_DPAD_CENTER	Key code constant: Directional Pad Center key.
int	KEYCODE_DPAD_DOWN	Key code constant: Directional Pad Down key.
int	KEYCODE_DPAD_LEFT	Key code constant: Directional Pad Left key.
int	KEYCODE_DPAD_RIGHT	Key code constant: Directional Pad Right key.
int	KEYCODE_DPAD_UP	Key code constant: Directional Pad Up key.
int	KEYCODE_DVR	Key code constant: DVR key.
int	KEYCODE_E	Key code constant: 'E' key.
int	KEYCODE_EISU	Key code constant: Japanese alphanumeric key.
int	KEYCODE_ENDCALL	Key code constant: End Call key.
int	KEYCODE_ENTER	Key code constant: Enter key.
int	KEYCODE_ENVELOPE	Key code constant: Envelope special function key.
int	KEYCODE_EQUALS	Key code constant: '=' key.
int	KEYCODE_ESCAPE	Key code constant: Escape key.
int	KEYCODE_EXPLORER	Key code constant: Explorer special function key.
int	KEYCODE_F	Key code constant: 'F' key.
int	KEYCODE_F1	Key code constant: F1 key.
int	KEYCODE_F10	Key code constant: F10 key.
int	KEYCODE_F11	Key code constant: F11 key.
int	KEYCODE_F12	Key code constant: F12 key.
int	KEYCODE_F2	Key code constant: F2 key.
int	KEYCODE_F3	Key code constant: F3 key.
int	KEYCODE_F4	Key code constant: F4 key.
int	KEYCODE_F5	Key code constant: F5 key.
int	KEYCODE_F6	Key code constant: F6 key.
int	KEYCODE_F7	Key code constant: F7 key.
int	KEYCODE_F8	Key code constant: F8 key.
int	KEYCODE_F9	Key code constant: F9 key.
int	KEYCODE_FOCUS	Key code constant: Camera Focus key.
int	KEYCODE_FORWARD	Key code constant: Forward key.
int	KEYCODE_FORWARD_DEL	Key code constant: Forward Delete key.
int	KEYCODE_FUNCTION	Key code constant: Function modifier key.
int	KEYCODE_G	Key code constant: 'G' key.
int	KEYCODE_GRAVE	Key code constant: '`' (backtick) key.
int	KEYCODE_GUIDE	Key code constant: Guide key.
int	KEYCODE_H	Key code constant: 'H' key.
int	KEYCODE_HEADSETHOOK	Key code constant: Headset Hook key.
int	KEYCODE_HENKAN	Key code constant: Japanese conversion key.
int	KEYCODE_HOME	Key code constant: Home key.
int	KEYCODE_I	Key code constant: 'I' key.
int	KEYCODE_INFO	Key code constant: Info key.
int	KEYCODE_INSERT	Key code constant: Insert key.
int	KEYCODE_J	Key code constant: 'J' key.
int	KEYCODE_K	Key code constant: 'K' key.
int	KEYCODE_KANA	Key code constant: Japanese kana key.
int	KEYCODE_KATAKANA_HIRAGANA	Key code constant: Japanese katakana / hiragana key.
int	KEYCODE_L	Key code constant: 'L' key.
int	KEYCODE_LANGUAGE_SWITCH	Key code constant: Language Switch key.
int	KEYCODE_LEFT_BRACKET	Key code constant: '[' key.
int	KEYCODE_M	Key code constant: 'M' key.
int	KEYCODE_MANNER_MODE	Key code constant: Manner Mode key.
int	KEYCODE_MEDIA_AUDIO_TRACK	Key code constant: Audio Track key Switches the audio tracks.
int	KEYCODE_MEDIA_CLOSE	Key code constant: Close media key.
int	KEYCODE_MEDIA_EJECT	Key code constant: Eject media key.
int	KEYCODE_MEDIA_FAST_FORWARD	Key code constant: Fast Forward media key.
int	KEYCODE_MEDIA_NEXT	Key code constant: Play Next media key.
int	KEYCODE_MEDIA_PAUSE	Key code constant: Pause media key.
int	KEYCODE_MEDIA_PLAY	Key code constant: Play media key.
int	KEYCODE_MEDIA_PLAY_PAUSE	Key code constant: Play/Pause media key.
int	KEYCODE_MEDIA_PREVIOUS	Key code constant: Play Previous media key.
int	KEYCODE_MEDIA_RECORD	Key code constant: Record media key.
int	KEYCODE_MEDIA_REWIND	Key code constant: Rewind media key.
int	KEYCODE_MEDIA_STOP	Key code constant: Stop media key.
int	KEYCODE_MENU	Key code constant: Menu key.
int	KEYCODE_META_LEFT	Key code constant: Left Meta modifier key.
int	KEYCODE_META_RIGHT	Key code constant: Right Meta modifier key.
int	KEYCODE_MINUS	Key code constant: '-'.
int	KEYCODE_MOVE_END	Key code constant: End Movement key.
int	KEYCODE_MOVE_HOME	Key code constant: Home Movement key.
int	KEYCODE_MUHENKAN	Key code constant: Japanese non-conversion key.
int	KEYCODE_MUSIC	Key code constant: Music special function key.
int	KEYCODE_MUTE	Key code constant: Mute key.
int	KEYCODE_N	Key code constant: 'N' key.
int	KEYCODE_NOTIFICATION	Key code constant: Notification key.
int	KEYCODE_NUM	Key code constant: Number modifier key.
int	KEYCODE_NUMPAD_0	Key code constant: Numeric keypad '0' key.
int	KEYCODE_NUMPAD_1	Key code constant: Numeric keypad '1' key.
int	KEYCODE_NUMPAD_2	Key code constant: Numeric keypad '2' key.
int	KEYCODE_NUMPAD_3	Key code constant: Numeric keypad '3' key.
int	KEYCODE_NUMPAD_4	Key code constant: Numeric keypad '4' key.
int	KEYCODE_NUMPAD_5	Key code constant: Numeric keypad '5' key.
int	KEYCODE_NUMPAD_6	Key code constant: Numeric keypad '6' key.
int	KEYCODE_NUMPAD_7	Key code constant: Numeric keypad '7' key.
int	KEYCODE_NUMPAD_8	Key code constant: Numeric keypad '8' key.
int	KEYCODE_NUMPAD_9	Key code constant: Numeric keypad '9' key.
int	KEYCODE_NUMPAD_ADD	Key code constant: Numeric keypad '+' key (for addition).
int	KEYCODE_NUMPAD_COMMA	Key code constant: Numeric keypad ',' key (for decimals or digit grouping).
int	KEYCODE_NUMPAD_DIVIDE	Key code constant: Numeric keypad '/' key (for division).
int	KEYCODE_NUMPAD_DOT	Key code constant: Numeric keypad '.' key (for decimals or digit grouping).
int	KEYCODE_NUMPAD_ENTER	Key code constant: Numeric keypad Enter key.
int	KEYCODE_NUMPAD_EQUALS	Key code constant: Numeric keypad '=' key.
int	KEYCODE_NUMPAD_LEFT_PAREN	Key code constant: Numeric keypad '(' key.
int	KEYCODE_NUMPAD_MULTIPLY	Key code constant: Numeric keypad '*' key (for multiplication).
int	KEYCODE_NUMPAD_RIGHT_PAREN	Key code constant: Numeric keypad ')' key.
int	KEYCODE_NUMPAD_SUBTRACT	Key code constant: Numeric keypad '-' key (for subtraction).
int	KEYCODE_NUM_LOCK	Key code constant: Num Lock key.
int	KEYCODE_O	Key code constant: 'O' key.
int	KEYCODE_P	Key code constant: 'P' key.
int	KEYCODE_PAGE_DOWN	Key code constant: Page Down key.
int	KEYCODE_PAGE_UP	Key code constant: Page Up key.
int	KEYCODE_PERIOD	Key code constant: '.' key.
int	KEYCODE_PICTSYMBOLS	Key code constant: Picture Symbols modifier key.
int	KEYCODE_PLUS	Key code constant: '+' key.
int	KEYCODE_POUND	Key code constant: '#' key.
int	KEYCODE_POWER	Key code constant: Power key.
int	KEYCODE_PROG_BLUE	Key code constant: Blue "programmable" key.
int	KEYCODE_PROG_GREEN	Key code constant: Green "programmable" key.
int	KEYCODE_PROG_RED	Key code constant: Red "programmable" key.
int	KEYCODE_PROG_YELLOW	Key code constant: Yellow "programmable" key.
int	KEYCODE_Q	Key code constant: 'Q' key.
int	KEYCODE_R	Key code constant: 'R' key.
int	KEYCODE_RIGHT_BRACKET	Key code constant: ']' key.
int	KEYCODE_RO	Key code constant: Japanese Ro key.
int	KEYCODE_S	Key code constant: 'S' key.
int	KEYCODE_SCROLL_LOCK	Key code constant: Scroll Lock key.
int	KEYCODE_SEARCH	Key code constant: Search key.
int	KEYCODE_SEMICOLON	Key code constant: ';' key.
int	KEYCODE_SETTINGS	Key code constant: Settings key.
int	KEYCODE_SHIFT_LEFT	Key code constant: Left Shift modifier key.
int	KEYCODE_SHIFT_RIGHT	Key code constant: Right Shift modifier key.
int	KEYCODE_SLASH	Key code constant: '/' key.
int	KEYCODE_SOFT_LEFT	Key code constant: Soft Left key.
int	KEYCODE_SOFT_RIGHT	Key code constant: Soft Right key.
int	KEYCODE_SPACE	Key code constant: Space key.
int	KEYCODE_STAR	Key code constant: '*' key.
int	KEYCODE_STB_INPUT	Key code constant: Set-top-box input key.
int	KEYCODE_STB_POWER	Key code constant: Set-top-box power key.
int	KEYCODE_SWITCH_CHARSET	Key code constant: Switch Charset modifier key.
int	KEYCODE_SYM	Key code constant: Symbol modifier key.
int	KEYCODE_SYSRQ	Key code constant: System Request / Print Screen key.
int	KEYCODE_T	Key code constant: 'T' key.
int	KEYCODE_TAB	Key code constant: Tab key.
int	KEYCODE_TV	Key code constant: TV key.
int	KEYCODE_TV_INPUT	Key code constant: TV input key.
int	KEYCODE_TV_POWER	Key code constant: TV power key.
int	KEYCODE_U	Key code constant: 'U' key.
int	KEYCODE_UNKNOWN	Key code constant: Unknown key code.
int	KEYCODE_V	Key code constant: 'V' key.
int	KEYCODE_VOLUME_DOWN	Key code constant: Volume Down key.
int	KEYCODE_VOLUME_MUTE	Key code constant: Volume Mute key.
int	KEYCODE_VOLUME_UP	Key code constant: Volume Up key.
int	KEYCODE_W	Key code constant: 'W' key.
int	KEYCODE_WINDOW	Key code constant: Window key.
int	KEYCODE_X	Key code constant: 'X' key.
int	KEYCODE_Y	Key code constant: 'Y' key.
int	KEYCODE_YEN	Key code constant: Japanese Yen key.
int	KEYCODE_Z	Key code constant: 'Z' key.
int	KEYCODE_ZENKAKU_HANKAKU	Key code constant: Japanese full-width / half-width key.
int	KEYCODE_ZOOM_IN	Key code constant: Zoom in key.
int	KEYCODE_ZOOM_OUT	Key code constant: Zoom out key.
int	MAX_KEYCODE	This constant was deprecated in API level 3. There are now more than MAX_KEYCODE keycodes. UsegetMaxKeyCode() instead.
int	META_ALT_LEFT_ON	This mask is used to check whether the left ALT meta key is pressed.
int	META_ALT_MASK	This mask is a combination of META_ALT_ON, META_ALT_LEFT_ON and META_ALT_RIGHT_ON.
int	META_ALT_ON	This mask is used to check whether one of the ALT meta keys is pressed.
int	META_ALT_RIGHT_ON	This mask is used to check whether the right the ALT meta key is pressed.
int	META_CAPS_LOCK_ON	This mask is used to check whether the CAPS LOCK meta key is on.
int	META_CTRL_LEFT_ON	This mask is used to check whether the left CTRL meta key is pressed.
int	META_CTRL_MASK	This mask is a combination of META_CTRL_ON, META_CTRL_LEFT_ON and META_CTRL_RIGHT_ON.
int	META_CTRL_ON	This mask is used to check whether one of the CTRL meta keys is pressed.
int	META_CTRL_RIGHT_ON	This mask is used to check whether the right CTRL meta key is pressed.
int	META_FUNCTION_ON	This mask is used to check whether the FUNCTION meta key is pressed.
int	META_META_LEFT_ON	This mask is used to check whether the left META meta key is pressed.
int	META_META_MASK	This mask is a combination of META_META_ON, META_META_LEFT_ON and META_META_RIGHT_ON.
int	META_META_ON	This mask is used to check whether one of the META meta keys is pressed.
int	META_META_RIGHT_ON	This mask is used to check whether the right META meta key is pressed.
int	META_NUM_LOCK_ON	This mask is used to check whether the NUM LOCK meta key is on.
int	META_SCROLL_LOCK_ON	This mask is used to check whether the SCROLL LOCK meta key is on.
int	META_SHIFT_LEFT_ON	This mask is used to check whether the left SHIFT meta key is pressed.
int	META_SHIFT_MASK	This mask is a combination of META_SHIFT_ON, META_SHIFT_LEFT_ON and META_SHIFT_RIGHT_ON.
int	META_SHIFT_ON	This mask is used to check whether one of the SHIFT meta keys is pressed.
int	META_SHIFT_RIGHT_ON	This mask is used to check whether the right SHIFT meta key is pressed.
int	META_SYM_ON	This mask is used to check whether the SYM meta key is pressed.





ADB:
