SOAP & SOAPUI

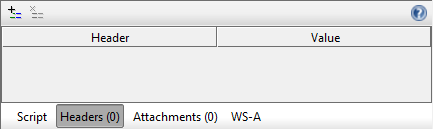

Headers

Two-Way

POST http://localhost:8090/axis2/services/GuestManagementService.GuestManagementServiceHttpSoap11Endpoint/ HTTP/1.1

Accept-Encoding: gzip,deflate

Content-Type: text/xml;charset=UTF-8

SOAPAction: "urn:addGuest"

Content-Length: 451

Host: localhost:8090

Connection: Keep-Alive

User-Agent: Apache-HttpClient/4.1.1 (java 1.5)

HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

Content-Type: text/xml;charset=UTF-8

Transfer-Encoding: chunked

Date: Sat, 01 Jun 2013 02:42:18 GMT

POST http://localhost:8090/axis2/services/GuestManagementService.GuestManagementServiceHttpSoap11Endpoint/ HTTP/1.1

Accept-Encoding: gzip,deflate

Content-Type: text/xml;charset=UTF-8

SOAPAction: "urn:getGuestDetails"

Content-Length: 337

Host: localhost:8090

Connection: Keep-Alive

User-Agent: Apache-HttpClient/4.1.1 (java 1.5)

HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

Content-Type: text/xml;charset=UTF-8

Transfer-Encoding: chunked

Date: Sat, 01 Jun 2013 02:36:36 GMT

One-Way

POST http://localhost:8090/axis2/services/GuestManagementService.GuestManagementServiceHttpSoap11Endpoint/ HTTP/1.1

Accept-Encoding: gzip,deflate

Content-Type: text/xml;charset=UTF-8

SOAPAction: "urn:deleteGuest"

Content-Length: 329

Host: localhost:8090

Connection: Keep-Alive

User-Agent: Apache-HttpClient/4.1.1 (java 1.5)

HTTP/1.1 202 Accepted

Server: Apache-Coyote/1.1

Content-Type: text/xml;charset=UTF-8

Transfer-Encoding: chunked

Date: Sat, 01 Jun 2013 02:37:19 GMT

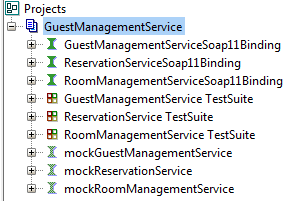

Create Bindings and Requests from WSDL file

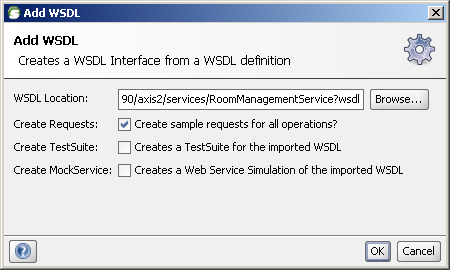

Add WSDL

Test Components

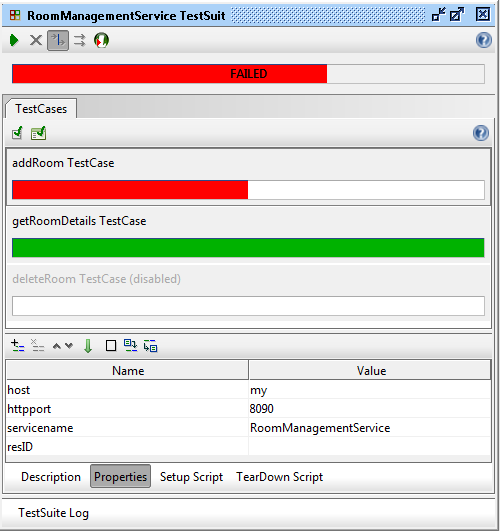

TestSuite

Toolbar

Run | Stop/Cancel Test | Run in Sequence | Run in Parrallel | Create LoadUI

New Test Case | New Web Test Case

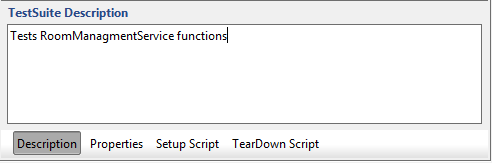

Description

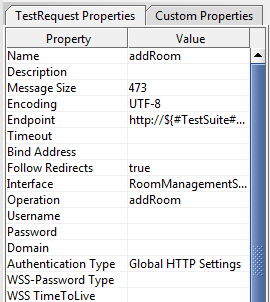

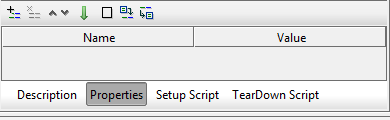

Properties

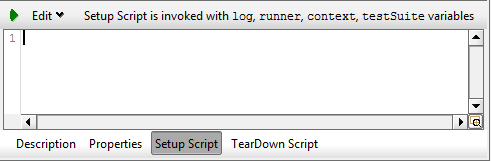

Setup Script

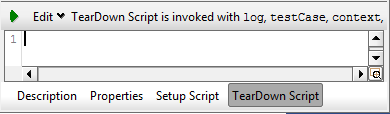

TearDown Script

TestSuite Properties

Custom Properties

TestCase

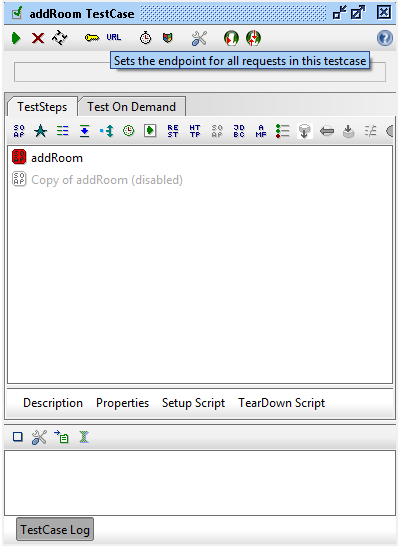

Test Case Editor

Description

Properties

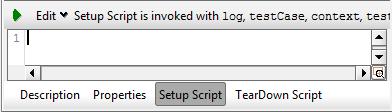

Setup Script

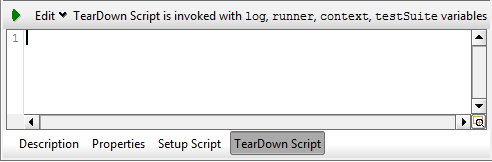

TearDown Script

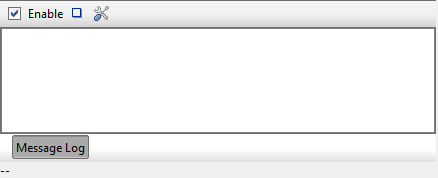

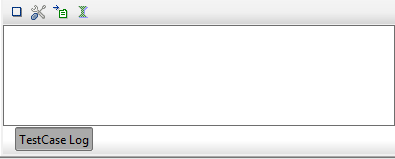

Test Case Log

Test Steps

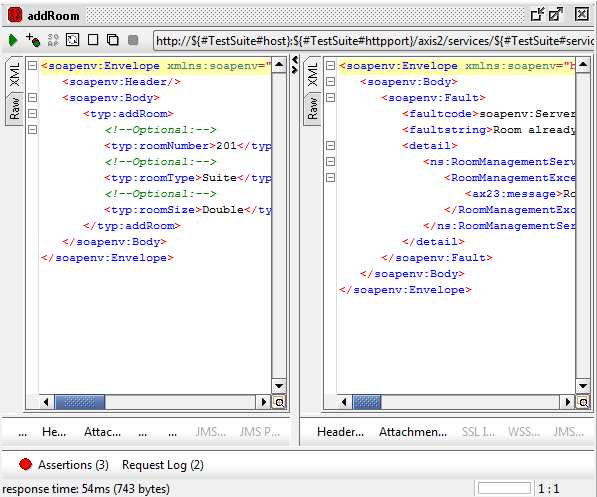

Request

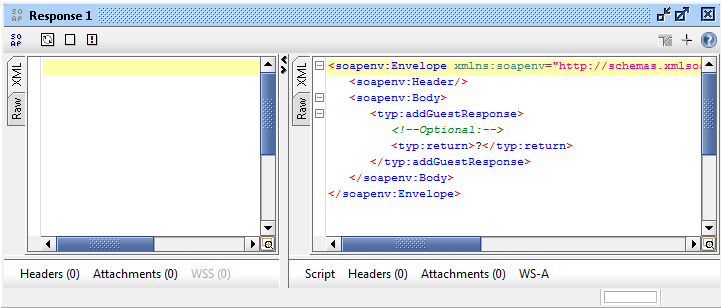

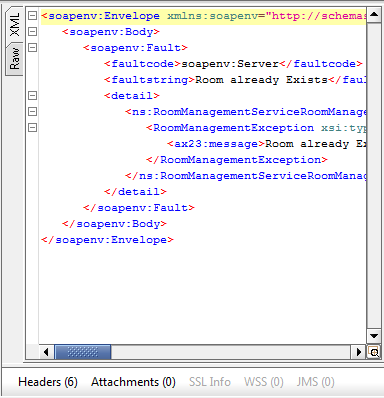

Response

Property Transfer

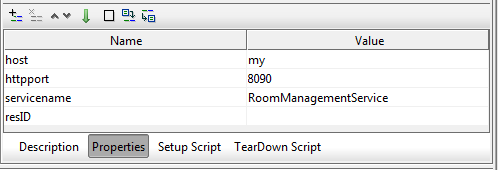

Test Suite Properties

Add resID, no value (this gets assigned on first run of test case with Property Transfer)

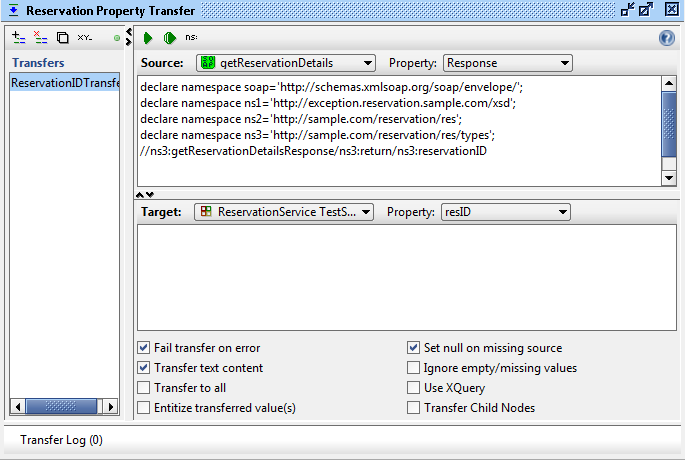

Reservation Property Transfer

ReservationIDTransfer

Source: getReservationDetails , Property: Response

Target: reservationServicer TestSuite , Property: resID

declare namespace soap='http://schemas.xmlsoap.org/soap/envelope/';
declare namespace ns1='http://exception.reservation.sample.com/xsd';
declare namespace ns2='http://sample.com/reservation/res';
declare namespace ns3='http://sample.com/reservation/res/types';
//ns3:getReservationDetailsResponse/ns3:return/ns3:reservationID

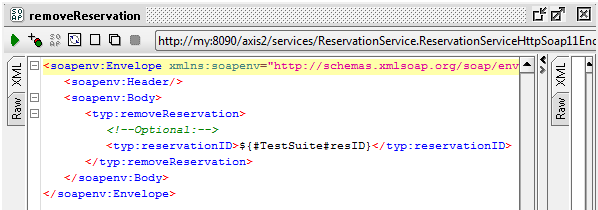

Use resID in removeReservation request

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:typ="http://sample.com/reservation/res/types">
  <soapenv:Header/>
  <soapenv:Body>
     <typ:removeReservation>
        <!--Optional:-->
        <typ:reservationID>${#TestSuite#resID}</typ:reservationID>
     </typ:removeReservation>
  </soapenv:Body>
</soapenv:Envelope>
